Industrial/ Marine Pressure Type Level Transducer for Water Ingress or Oil Tanks

Industrial/ Marine Pressure Type Level Transducer for Water Ingress or Oil Tanks

Quantity:
Availability:





Inquire Add to Basket

Type:
Piezoresistive Pressure Sensor
Component:
SemiConductor Type
For:
Diffused Silicon Pressure Transmitter
Output Signal Type:
Analog Type
Production Process:
Integration
Material:
Stainless Steel

Product Description

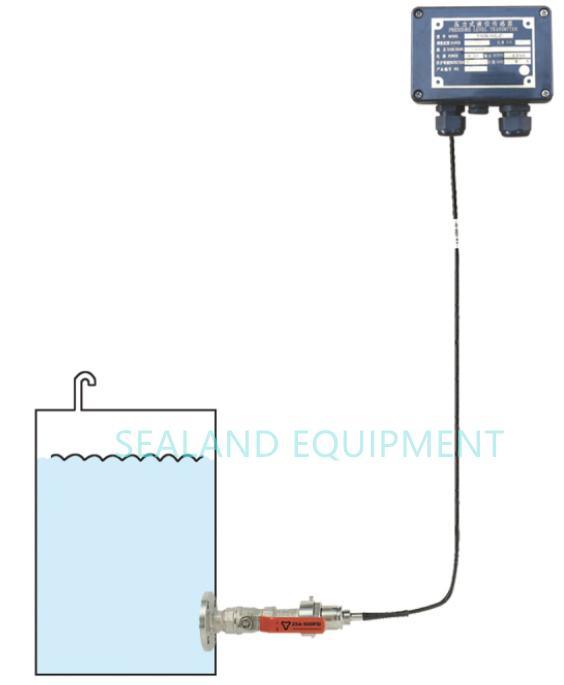

Pressure type level transmitter consists of transmitter, signal amplifier etc. It is used for continuously measuring the liquid level of ballast tank, draft and fuel oil tank. The pressure type transmitter in the liquid tank bottom can timely sense the pressure change due to the height change, and change the level height signal into pressure electric signal. The output signal is changed into 4~20mA (2-wire) DC level signal via amplifier. The level signal is transformed to the level indicator in the control panel via safety barrier, or tank level is indicated and controlled by loading computer.

Main technical specification:

Mounting type	Side, top
Model	YSZK-01L-C (-E)
Output	DC4~20mA (HART)
Accuracy	±0.5%F.S
Power voltage	DC24V
Range	0~40m
Working temperature	-20~+60ºC
Diaphragm cell	capacitive transmitter
Material	SUS316L or ceramic (diaphragm), SUS316L (transmitter)
Protection grade	IP68 (submersible type transducer), IP66/IP68 (amplifier)
Ex-proof type	Ex ia IIC T4~T6 (intrinsic safety type)
Cable length	3m in standard (option: up to 50m)
Application	Heeling and trim remote reading Draft remote reading Ballast tank remote reading Fuel oil tank remote reading
Features	High measuring accuracy Excellent stability High over-load ability Digital remote adjustment Corrosion resistance No hysteresis

Order note: Please advise mounting type (side/ top), tank height, measuring unit, capillary length, liquid specific gravity, dead zone, mounting height and flange standard when place order.

Industrial/ Marine Pressure Type Level Transducer for Water Ingress or Oil Tanks

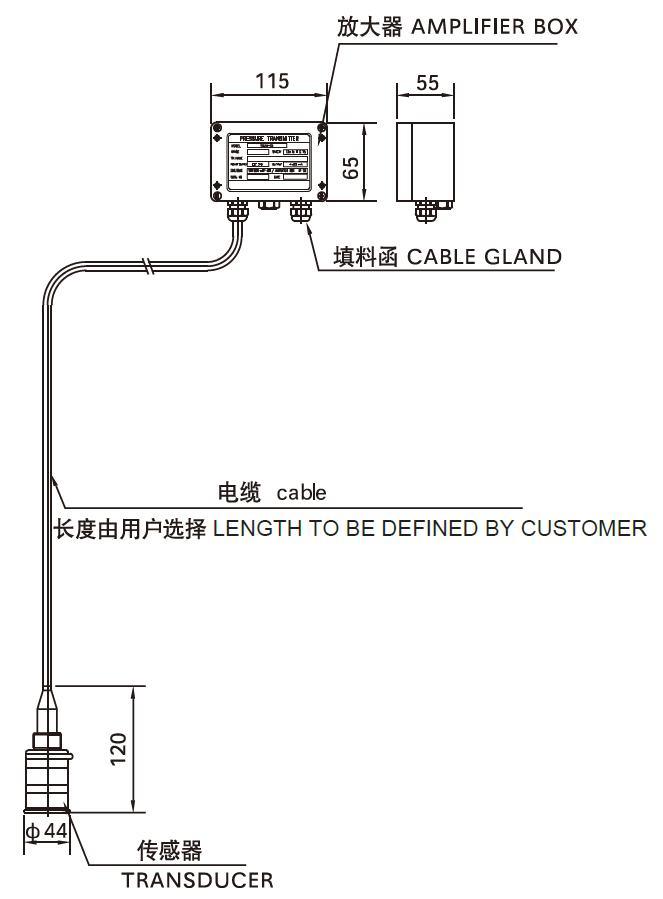

Sketch:

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:
Class certificate: CCS (Type approval)
