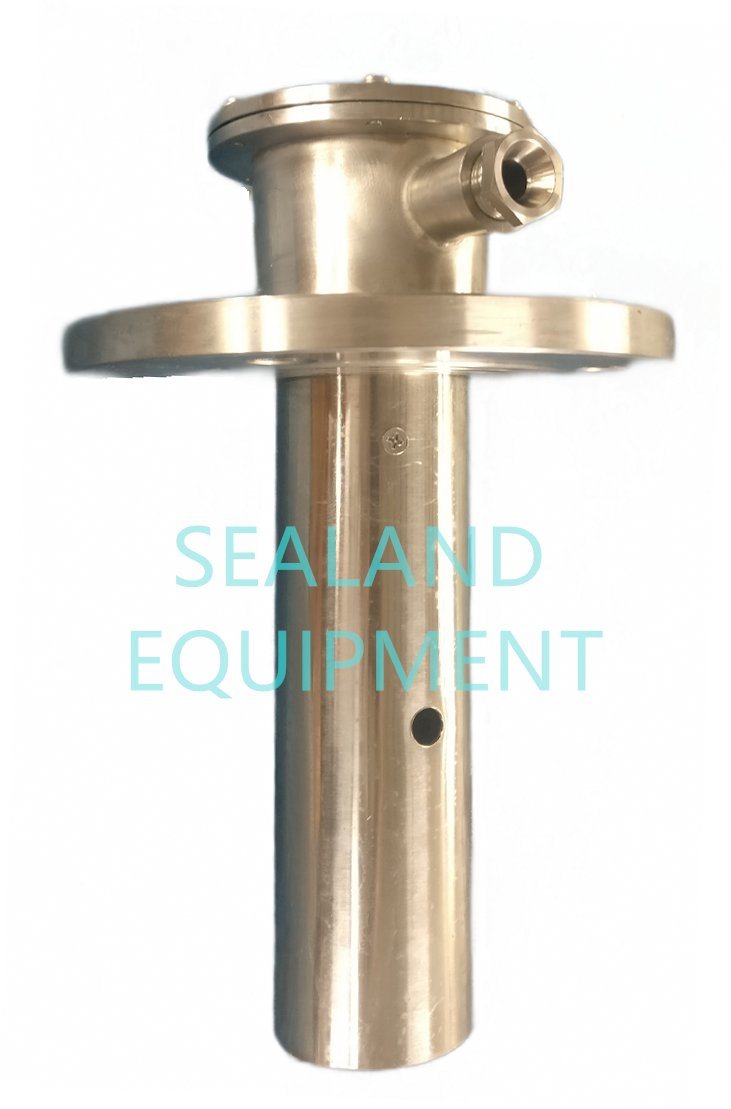

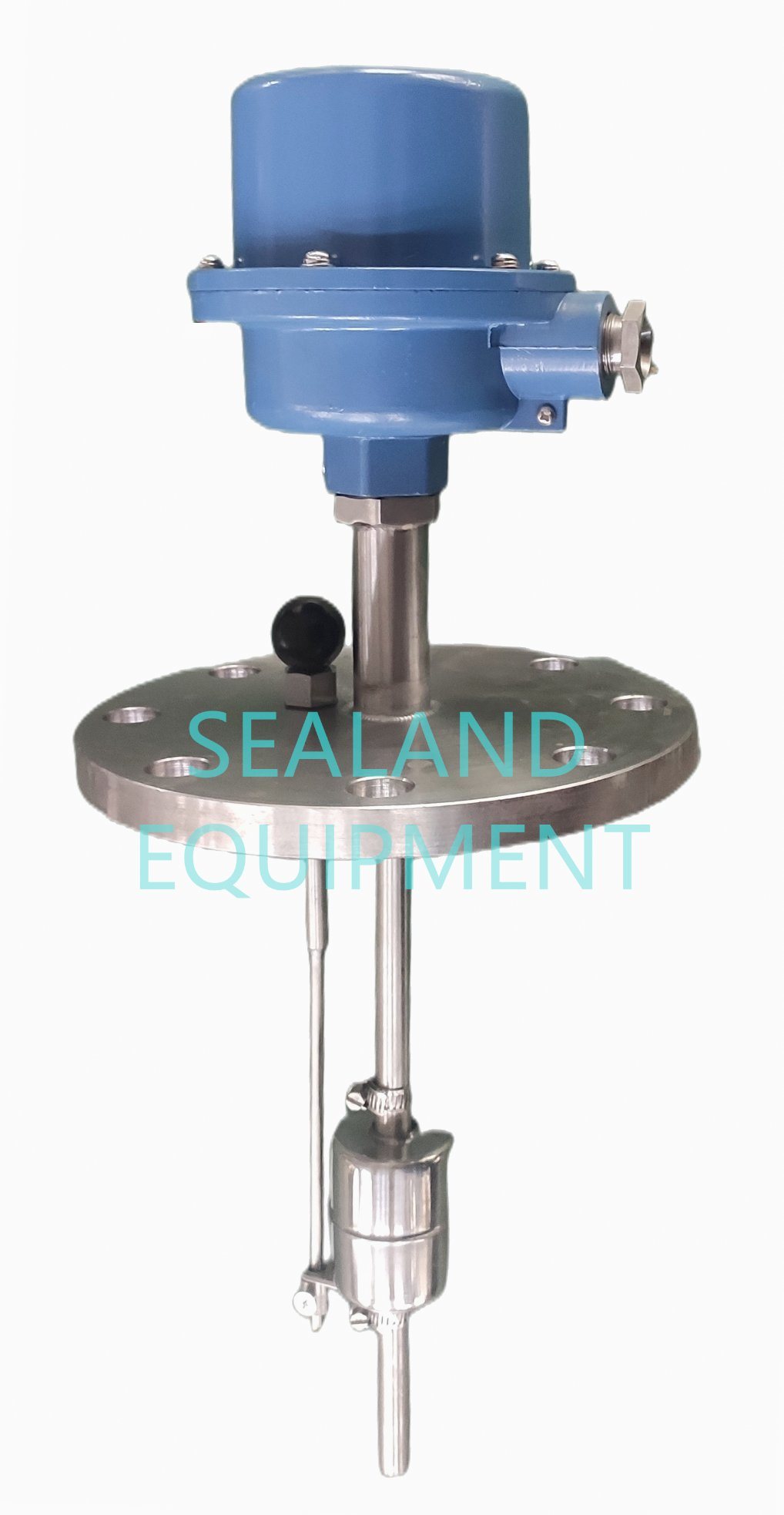

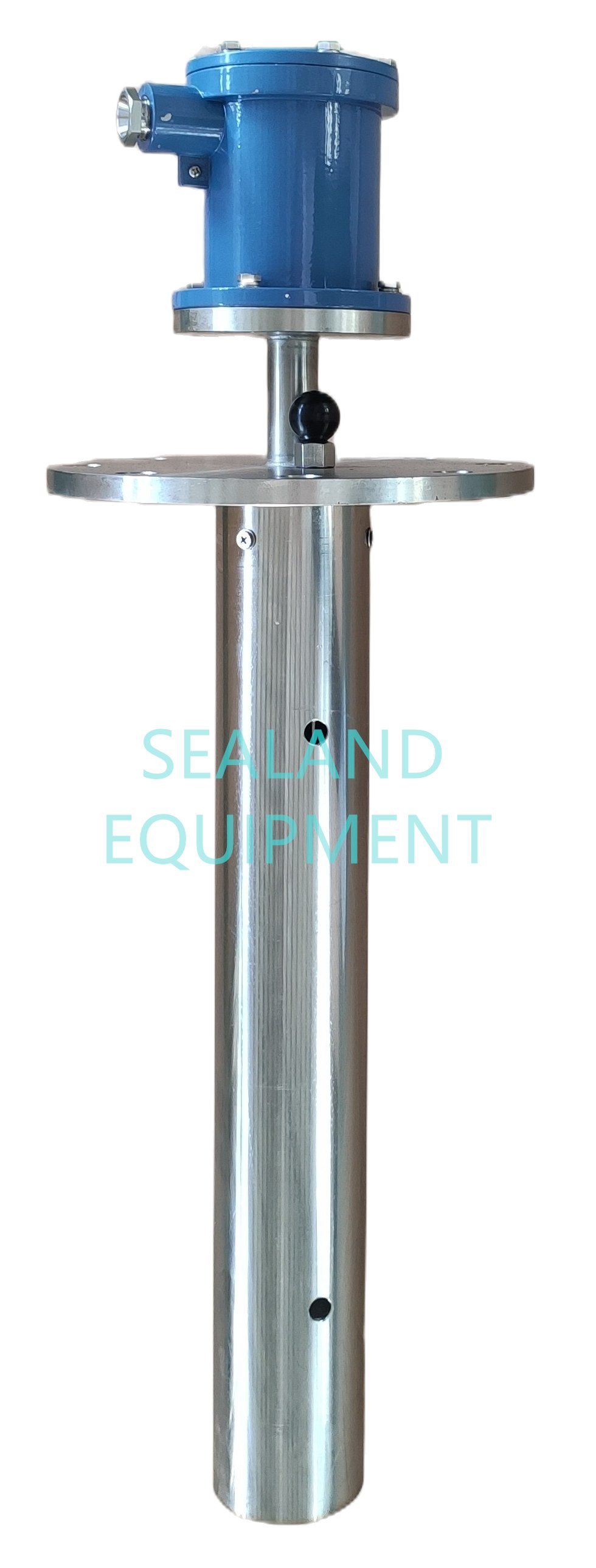

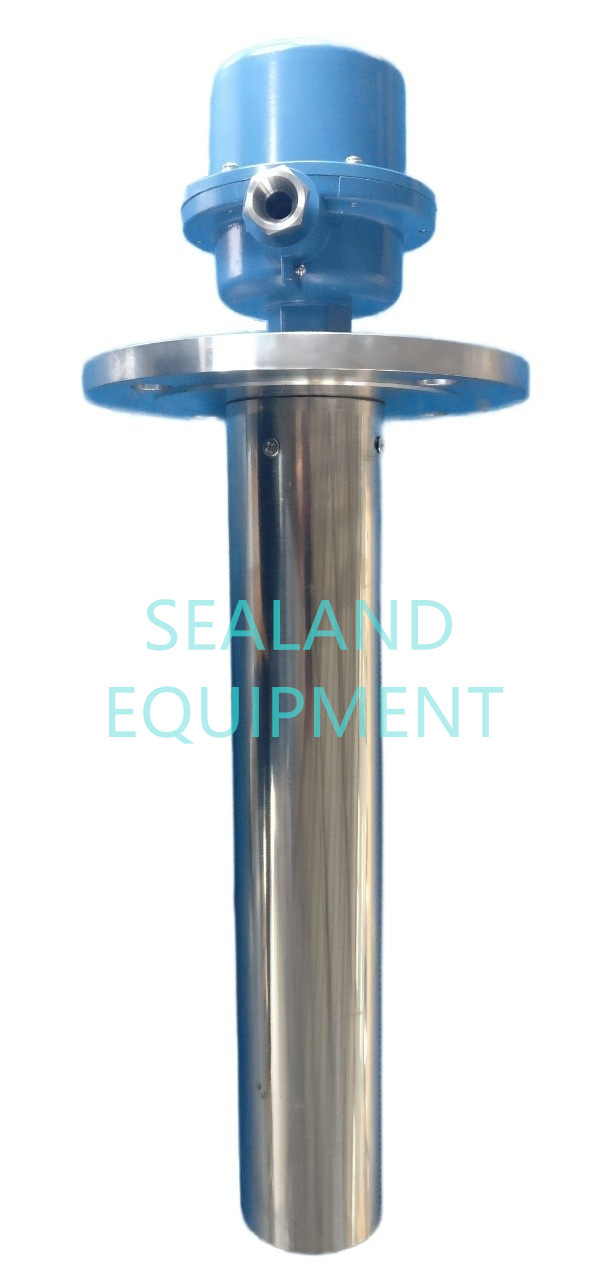

OEM Industrial/ Marine Ex-Proof Float Level Switch for Oil/ Water Alarm

Quantity:
Availability:





Inquire Add to Basket

Type:
Floating Ball
Contact:
Contact
Output Signal Type:
Switching Type
Production Process:
Integration
Feature:
Corrosion Resistant
Material:
Stainless Steel

Product Description

UQK series float level controller is widely used in ship , chemical industry and other equipment to control and alarm the level in tank by two position type.

Installation type	Top mounted type
Model sign	UQK-652-C (common type) UQK-652-C-Z (common type, with test device) UQK-652-C-B (ex-proof type) UQK-652-C-B-Z (ex-proof type, with test device)
Protection class	IP66 or IP68
Switching error	10~40mm
Contact form	SPDT
Accuracy	<20mm
Working pressure	1.0MPa
Medium gravity	0.8~1.2
Floater diameter	28mm, 45mm, 60mm
Diameter of protection pipe	63mm, 76mm
Measuring range "L"	300~2500mm
Flange standard	GB2506-2005, JIS or other as request
Contact capacity	AC 250V 10A, DC 24V
Ex-proof mark	Ex d IIC T4-T6, Ex ia IIC T3-T6

Order note: Please advise flange size, floater diameter, and alarm position when place order.

SKETCHES:

UQK-652-C IP66 (no protection pipe)

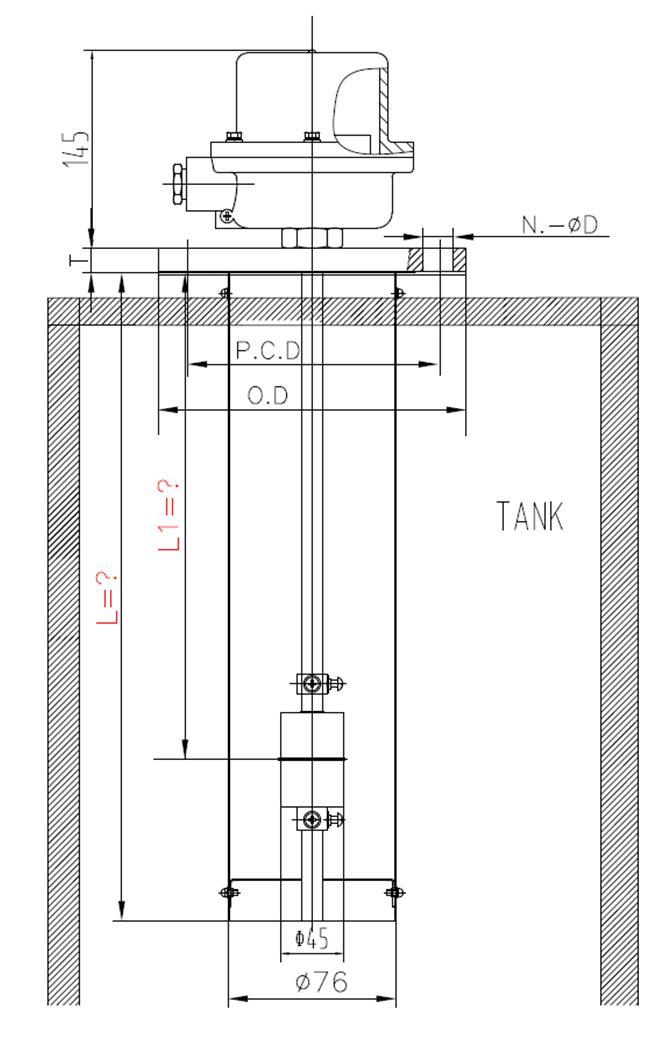

UQK-652-C IP66 (with protection pipe)

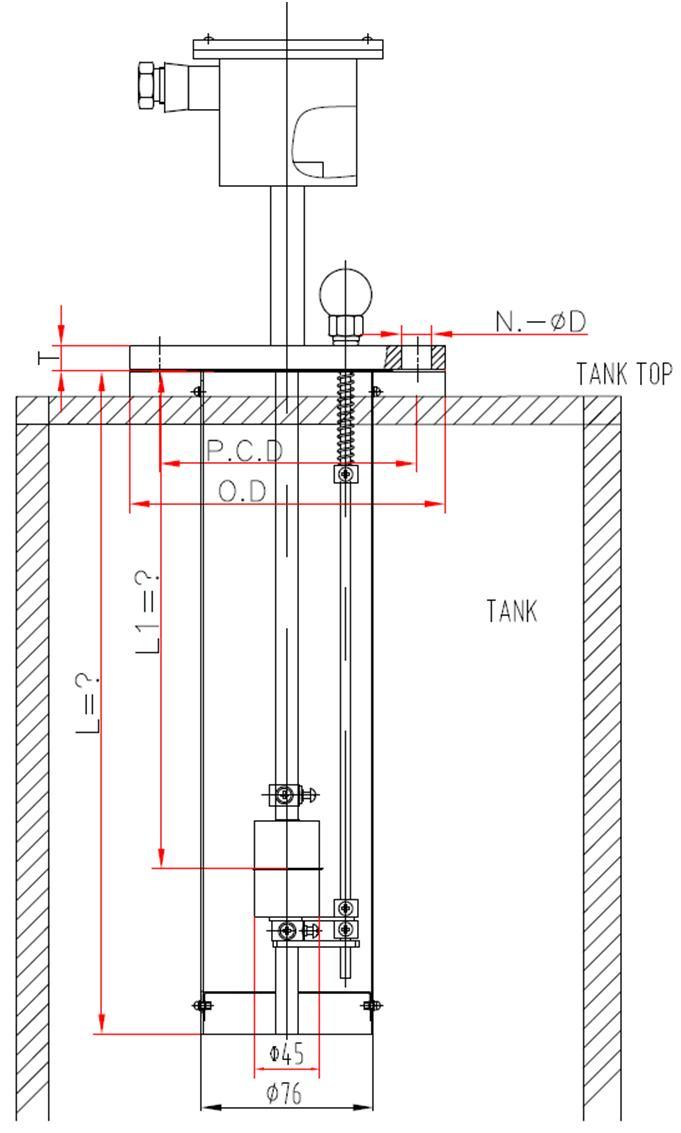

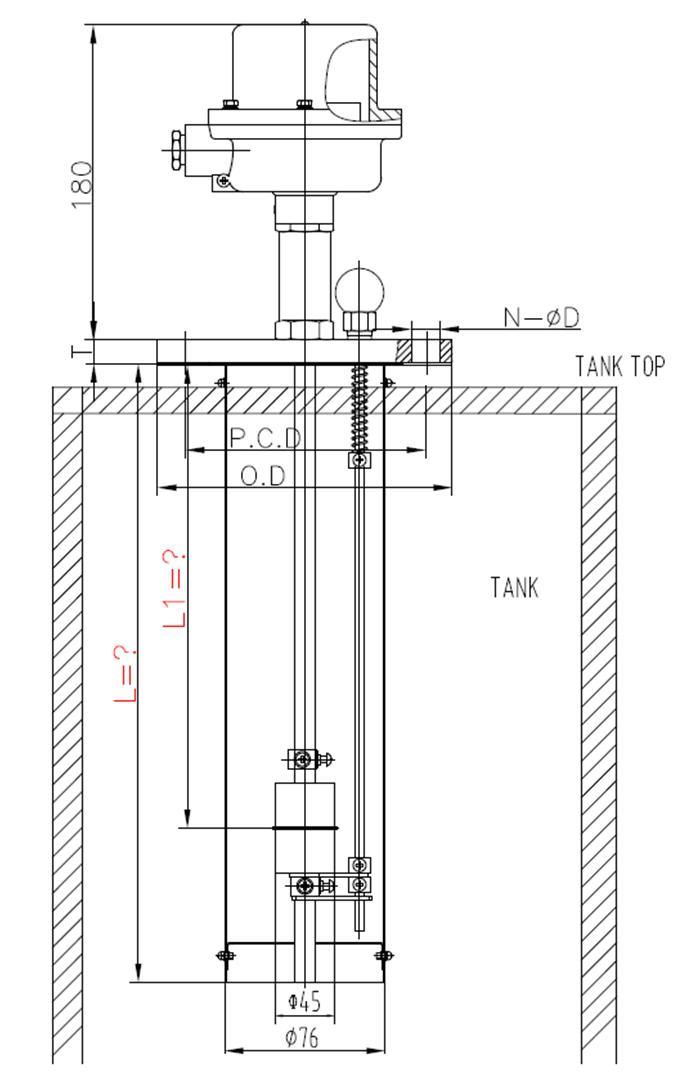

UQK-652-C IP66 (with test device and protection pipe)

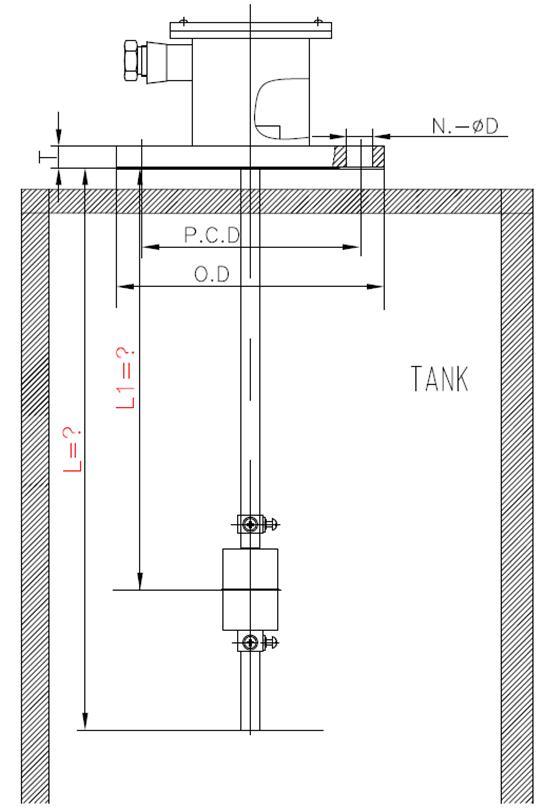

UQK-652-C IP68 (no protection pipe)

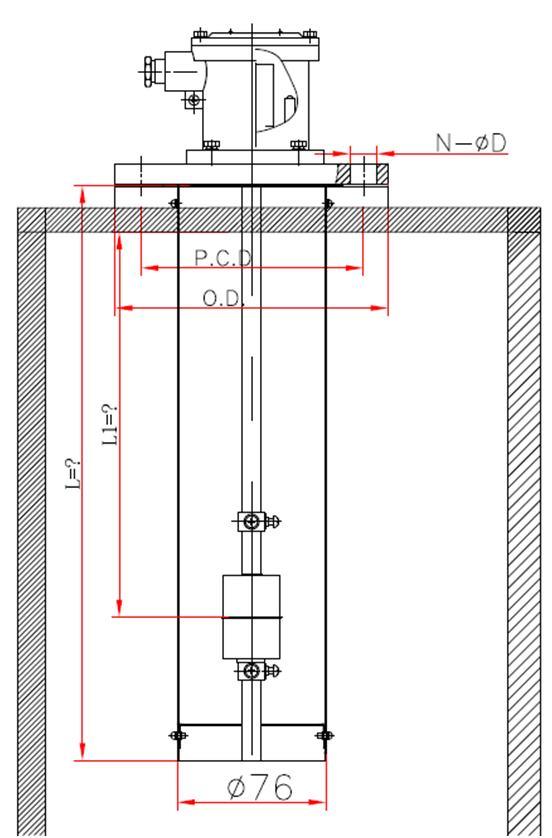

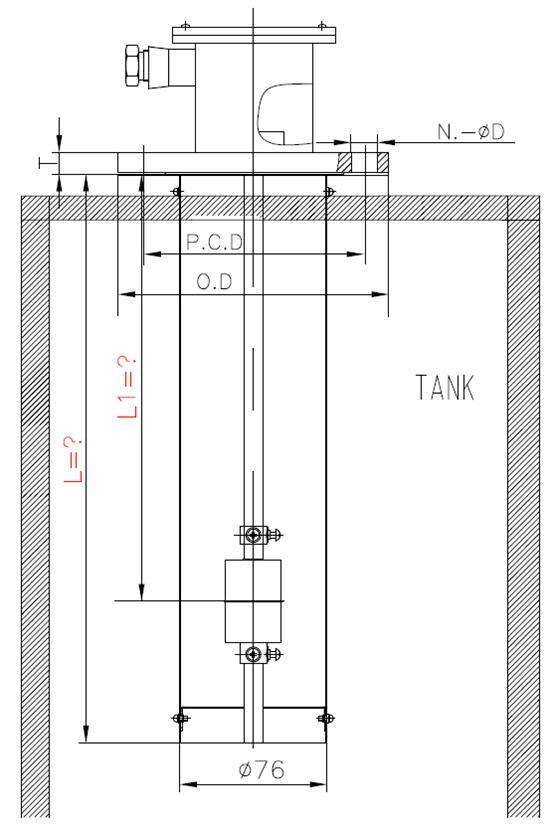

UQK-652-C IP68 (with protection pipe)
UQK-652-C IP68 (with test device and protection pipe)
UQK-652-C-B IP66 (EX-proof type, with protection pipe)

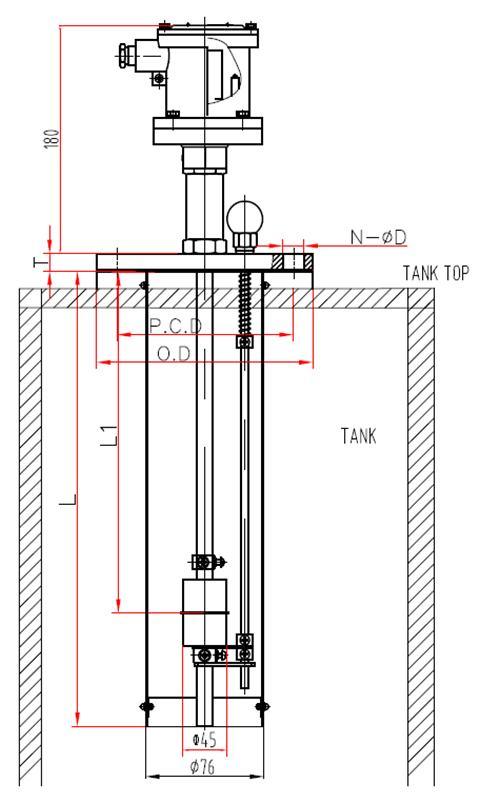

UQK-652-C-B IP66 (EX-proof type, with test device and protection pipe)

OEM Industrial/ Marine Ex-Proof Float Level Switch for Oil/ Water Alarm

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:
Class certificate: CCS, BV (Type approval)
