Product Description

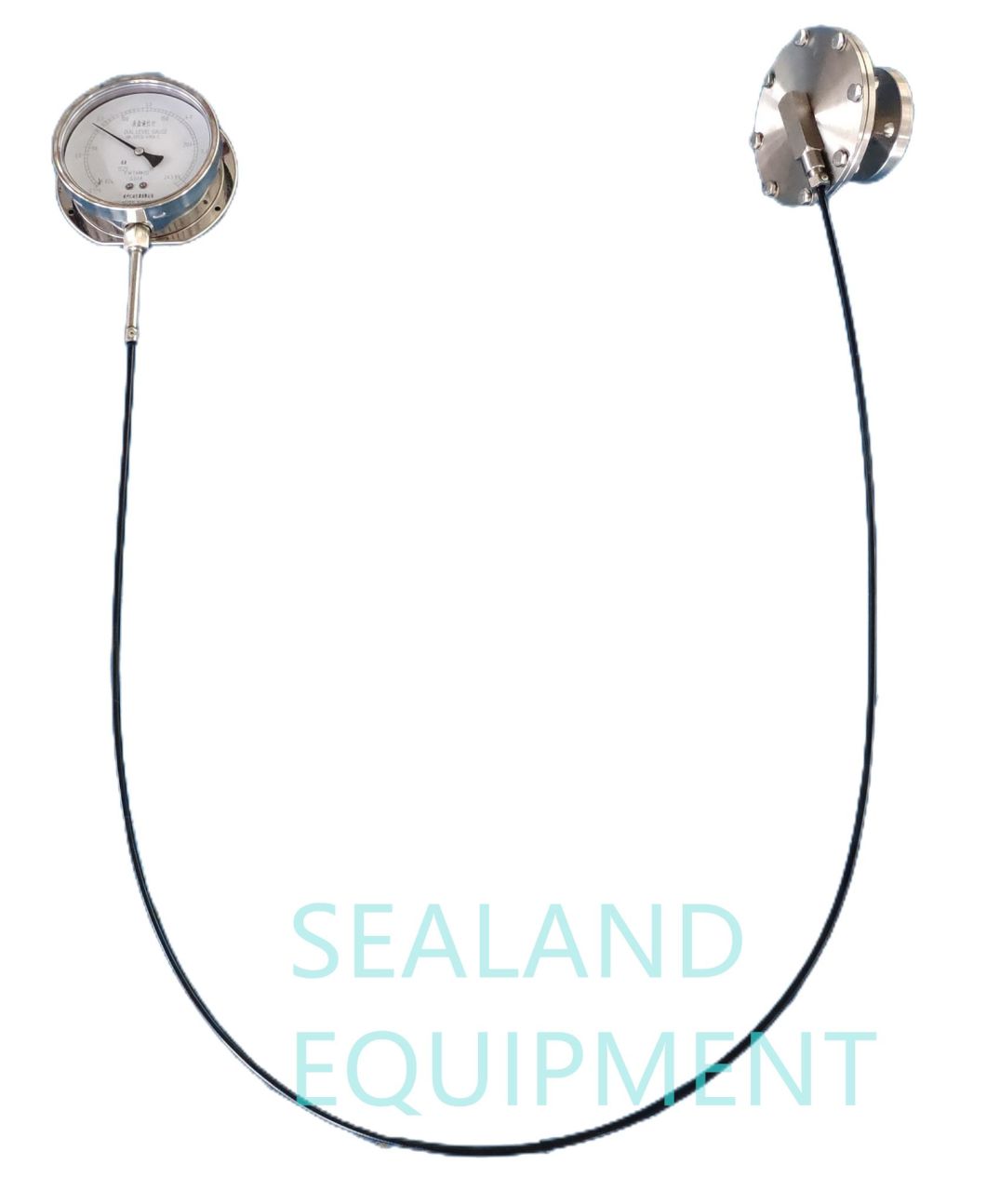

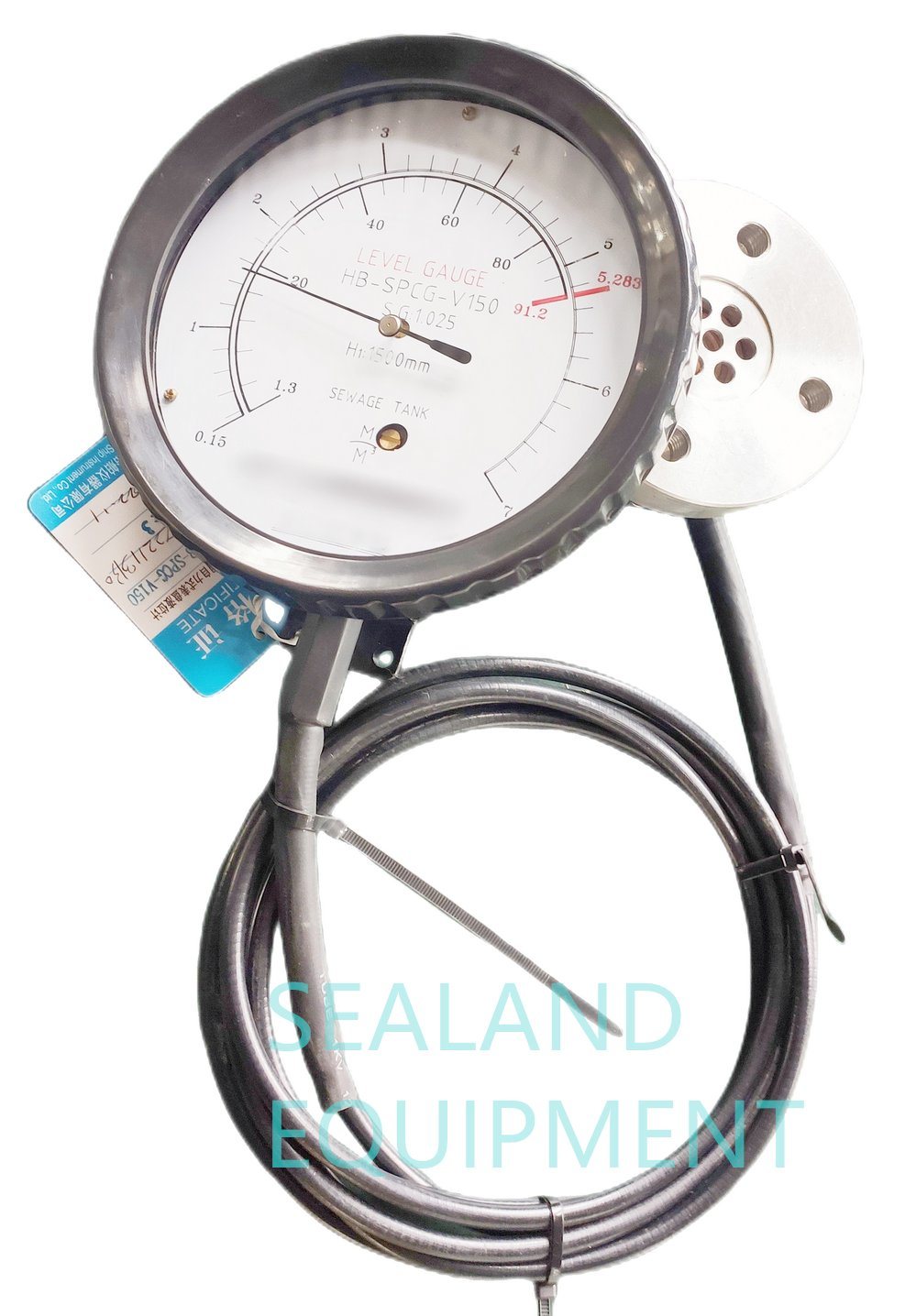

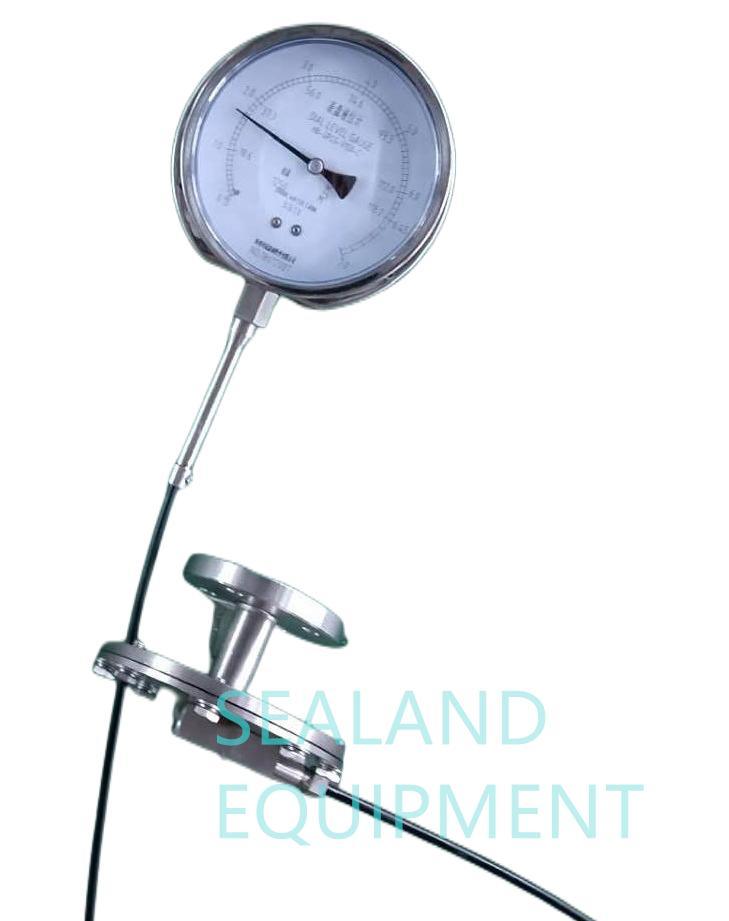

The self-powered content gauge consists of transmitter, capillary and indication gauge, within the characteristic of small volume, light weight, easy-to-install, high accuracy, stable and durable, can be widely used to measure the liquid level in tanks of ships and other industrial equipment.

OEM Self-Powered Content Gauge with Factory Price

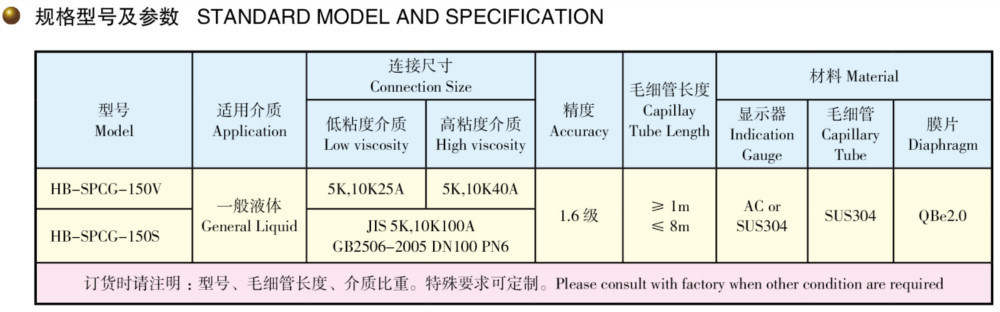

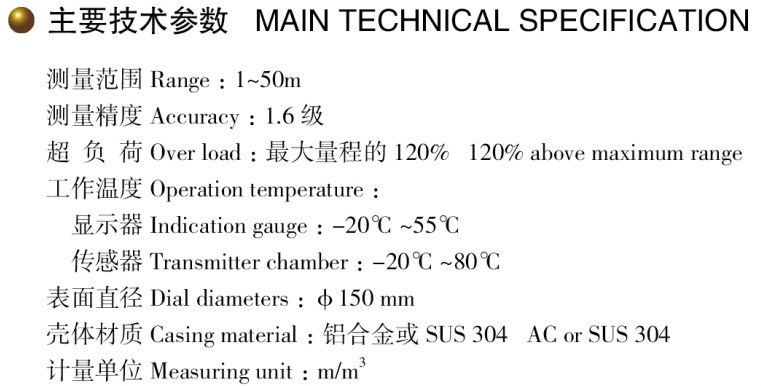

Main technical specification:

Model	HB-SPCG-150V (Side mounting type)
Model	HB-SPCG-150S (Top mounting type)
Measuring range	1~50m
Accuracy	±1.5% F.S
Overload	120% of full range
Operation temperature	-20ºC ~55ºC (indication gauge)
Operation temperature	-20ºC ~90ºC (transmitter)
Dial diameter	150 mm
Measurement unit	m (height)
Measurement unit	m/m3 (height & volume)
Capillary tube length	between 1m to 8m
Flange standard	GB/T2506-2005 or customized
Material	AC or SUS304 (indication gauge)
	SUS304 (capillary tube)
	PBP, stainless steel (diaphragm,)

Order note: Please advise mounting type (side/ top), tank height, measuring unit, capillary length, liquid specific gravity, dead zone, mounting height and flange standard when place order.

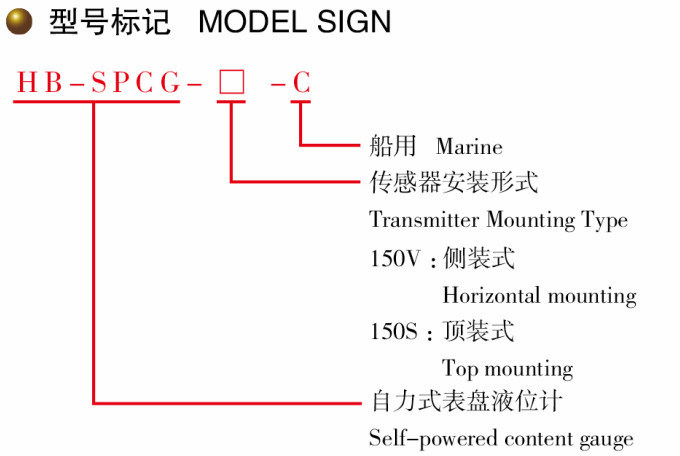

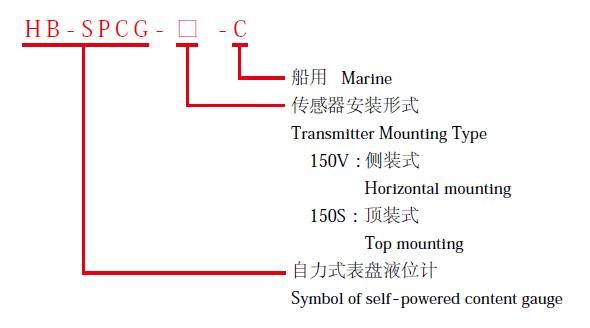

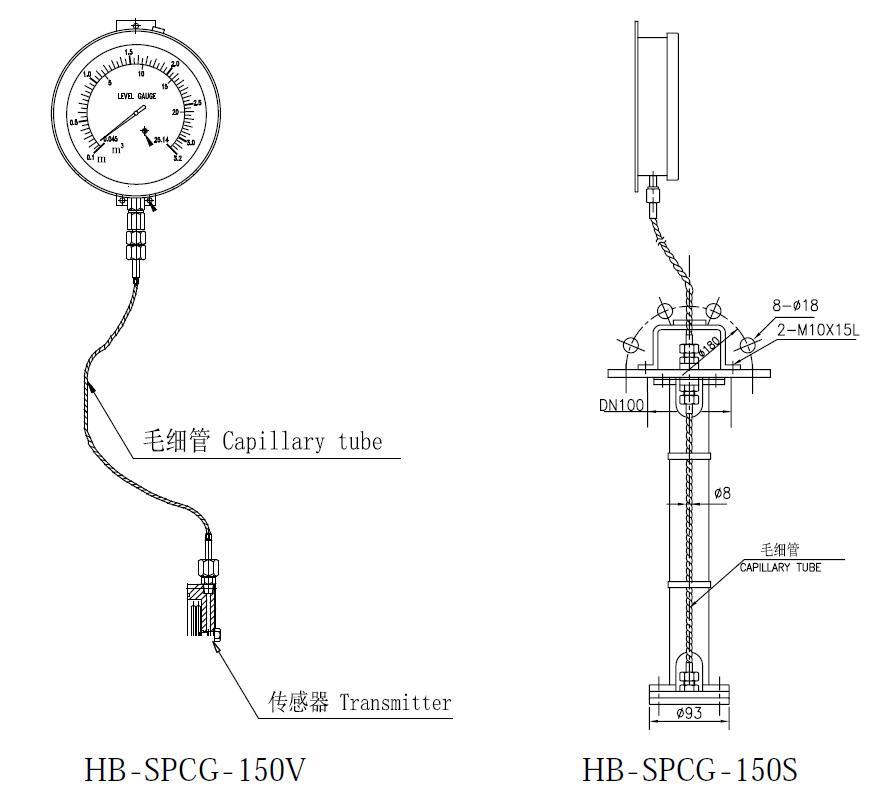

Model sign:

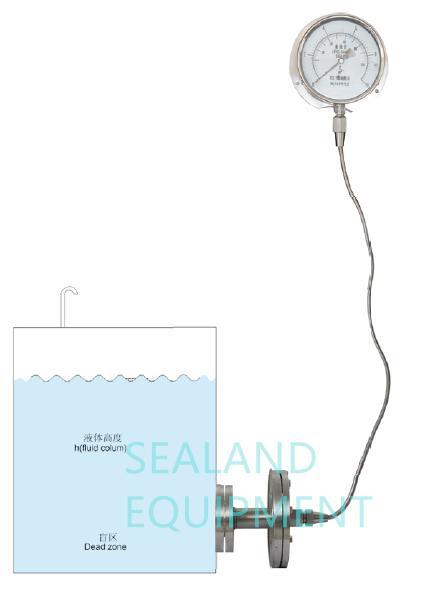

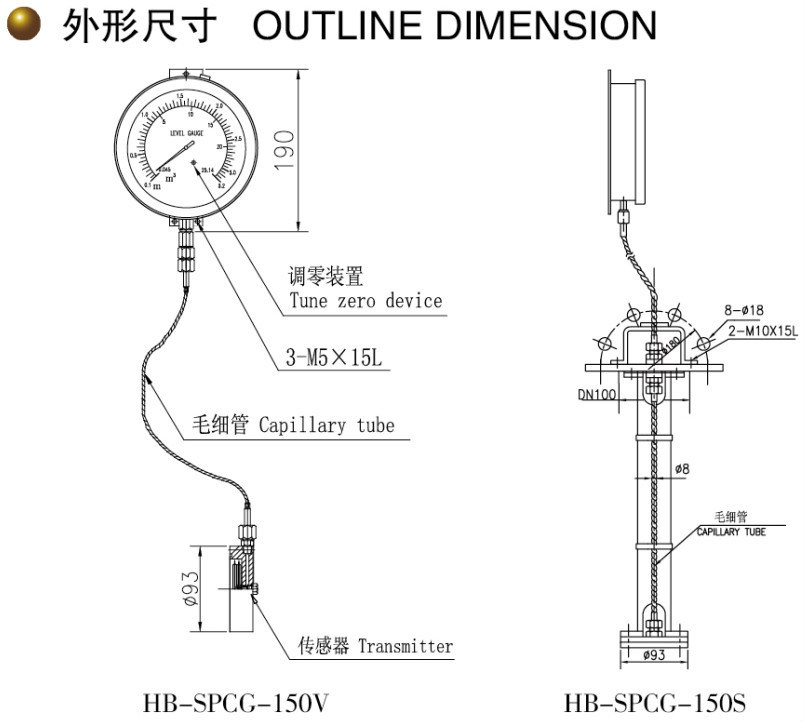

Sketch:

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:
Class certificate: CCS (Type approval)
