Radil Direction Type Thermometer Series Industrial Bimetallic Thermometer Thermometer Bimetallic Temperature Indicator Wss-511

Radil Direction Type Thermometer Series Industrial Bimetallic Thermometer Thermometer Bimetallic Temperature Indicator Wss-511

Quantity:
Availability:





Inquire Add to Basket

Principle:
Pressure Conversion Type
Range:
0-50m
Measurement Accuracy:
1.6
Accuracy:
+/- 1.5%Fs
Kind:
Liquid Level Transmitter
Structure:
All in One

Product Description

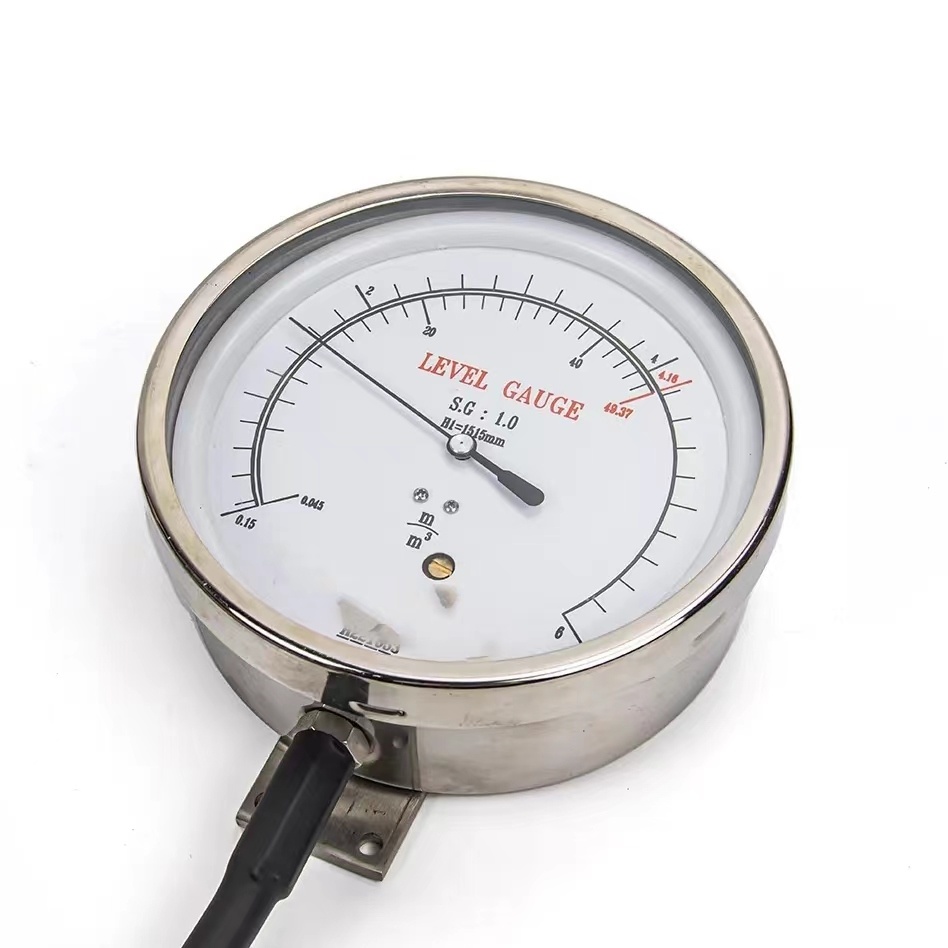

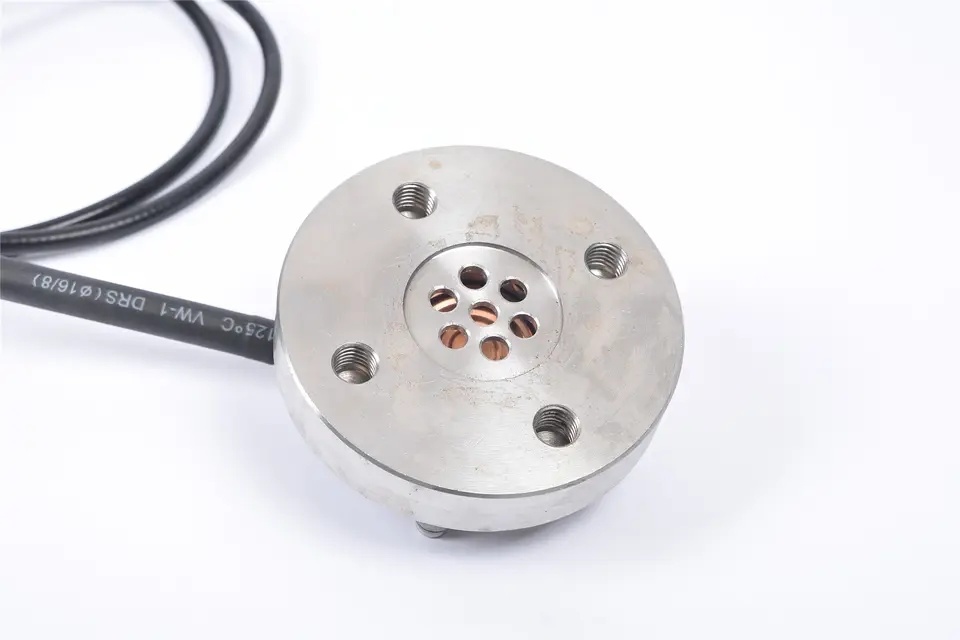

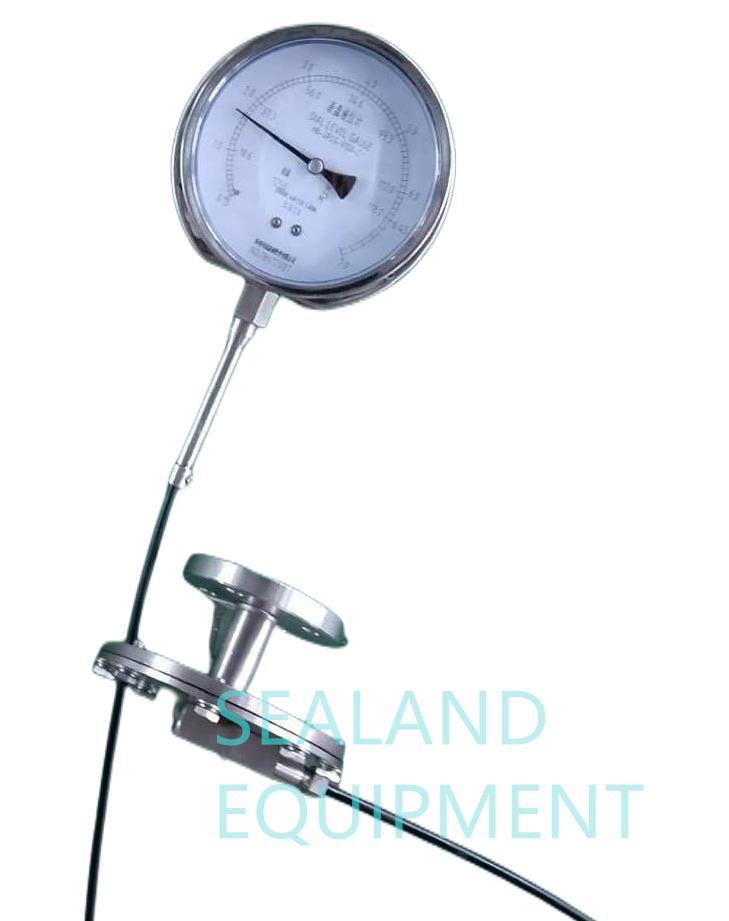

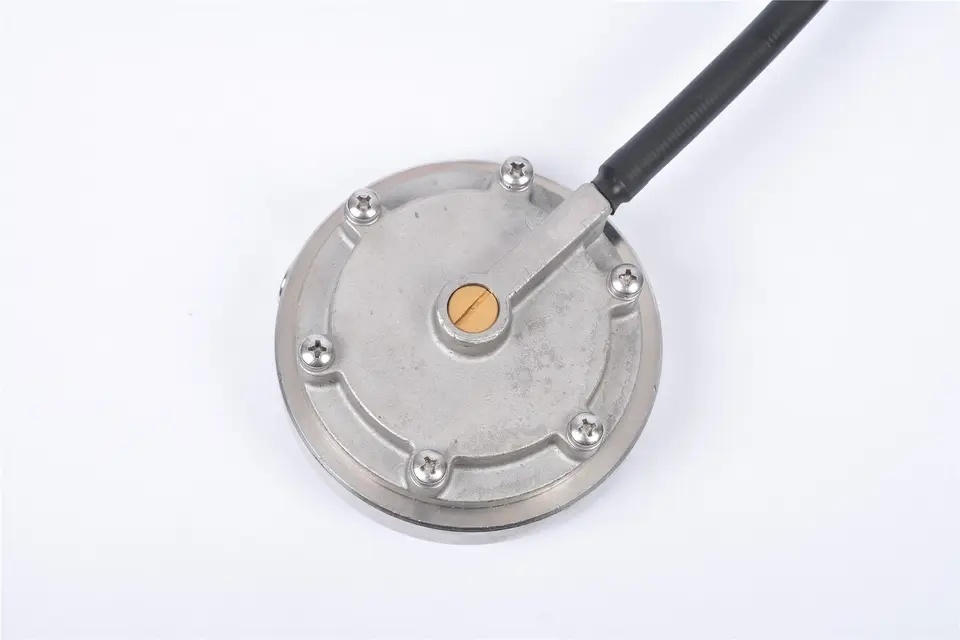

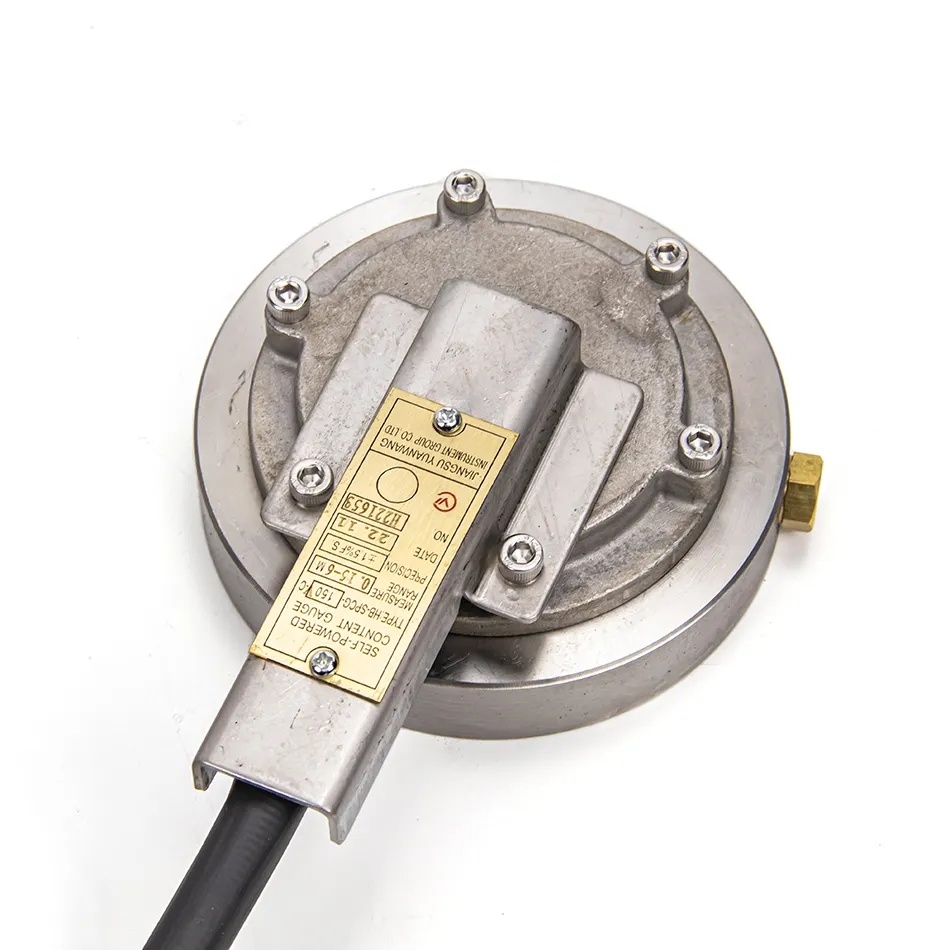

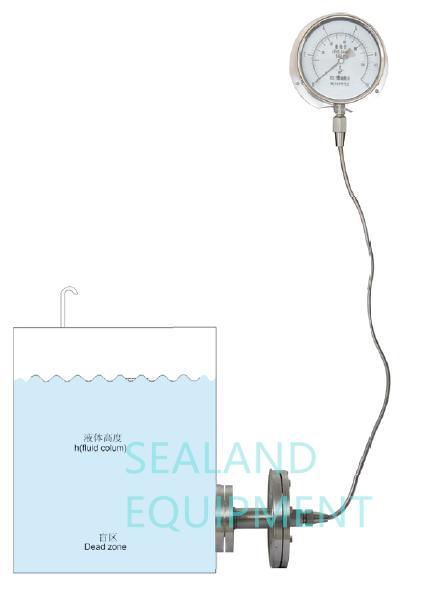

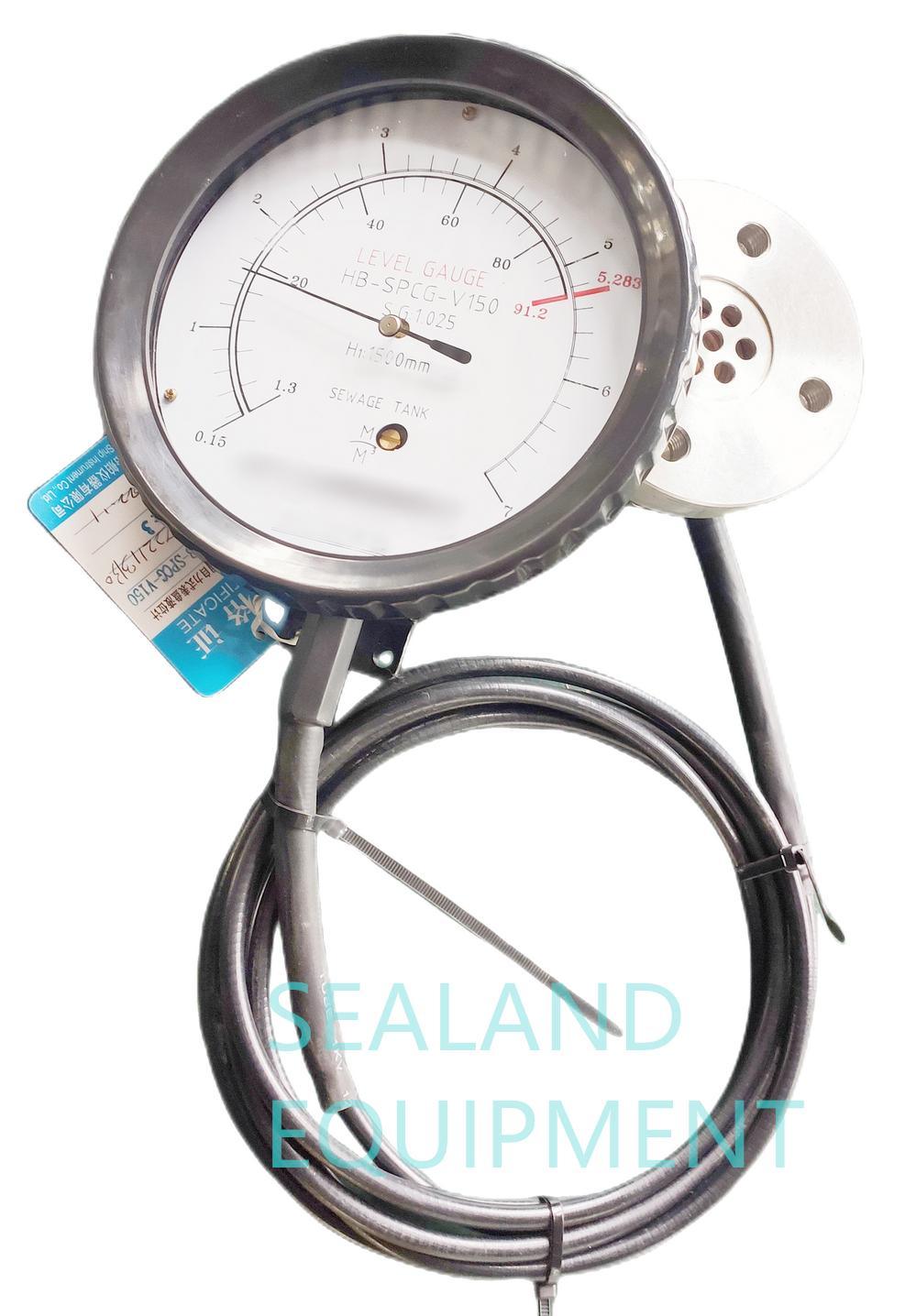

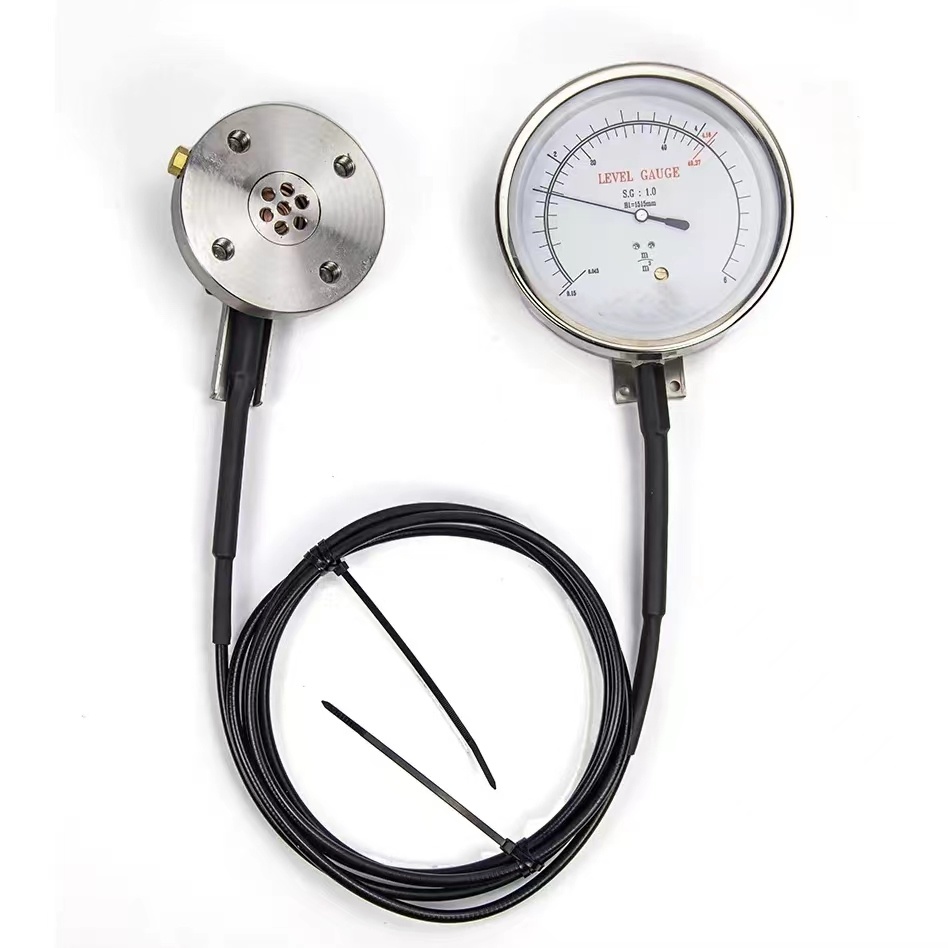

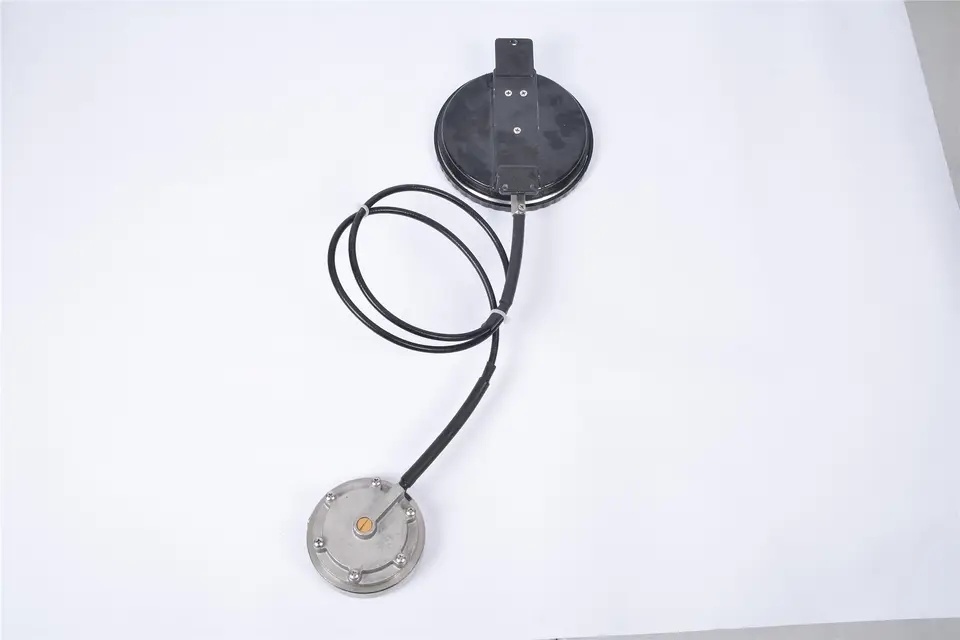

The self-powered content gauge consists of transmitter, capillary and indication gauge, within the characteristic of small volume, light weight, easy-to-install, high accuracy, stable and durable, can be widely used to measure the liquid level in tanks of ships and other industrial equipment.

Radil Direction Type Thermometer Series Industrial Bimetallic Thermometer Thermometer Bimetallic Temperature Indicator Wss-511

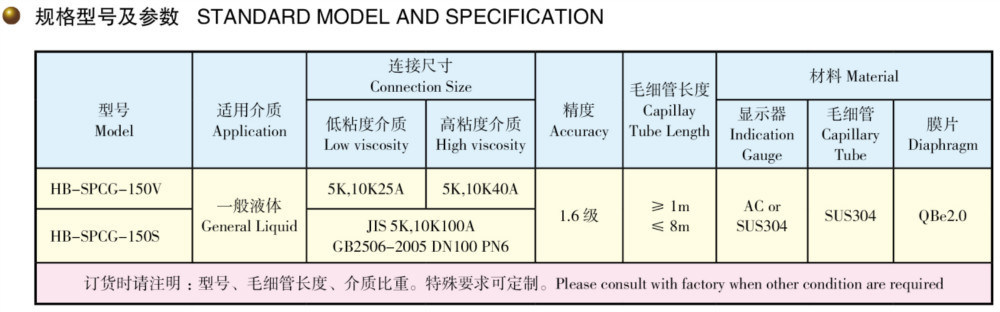

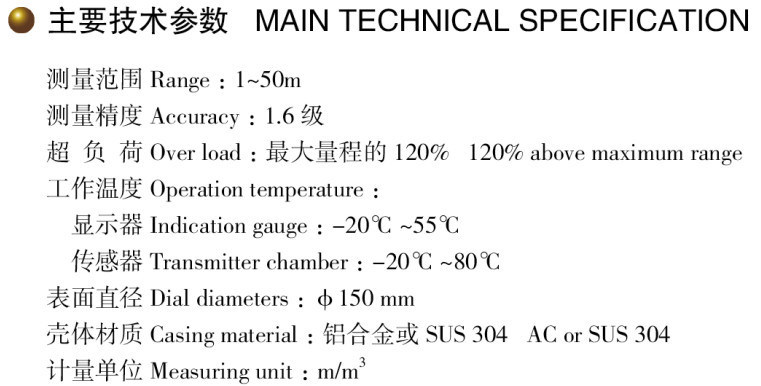

Main technical specification:

Model	HB-SPCG-150V (Side mounting type)
Model	HB-SPCG-150S (Top mounting type)
Measuring range	1~50m
Accuracy	±1.5% F.S
Overload	120% of full range
Operation temperature	-20ºC ~55ºC (indication gauge)
Operation temperature	-20ºC ~90ºC (transmitter)
Dial diameter	150 mm
Measurement unit	m (height)
Measurement unit	m/m3 (height & volume)
Capillary tube length	between 1m to 8m
Flange standard	GB/T2506-2005 or customized
Material	AC or SUS304 (indication gauge)
	SUS304 (capillary tube)
	PBP, stainless steel (diaphragm,)

Order note: Please advise mounting type (side/ top), tank height, measuring unit, capillary length, liquid specific gravity, dead zone, mounting height and flange standard when place order.

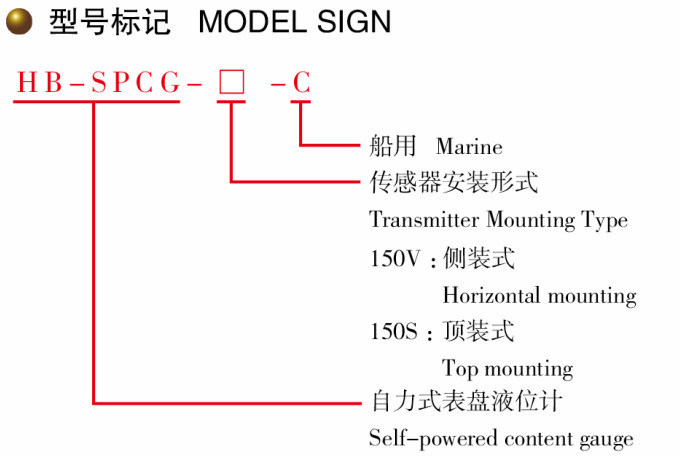

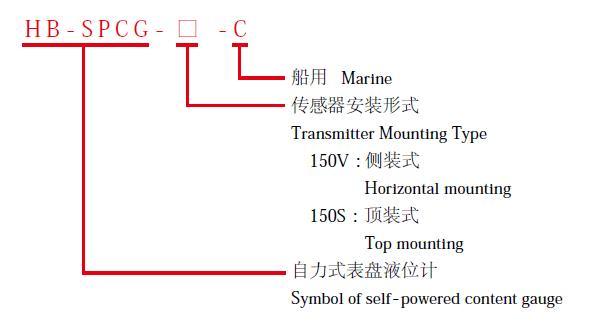

Model sign:

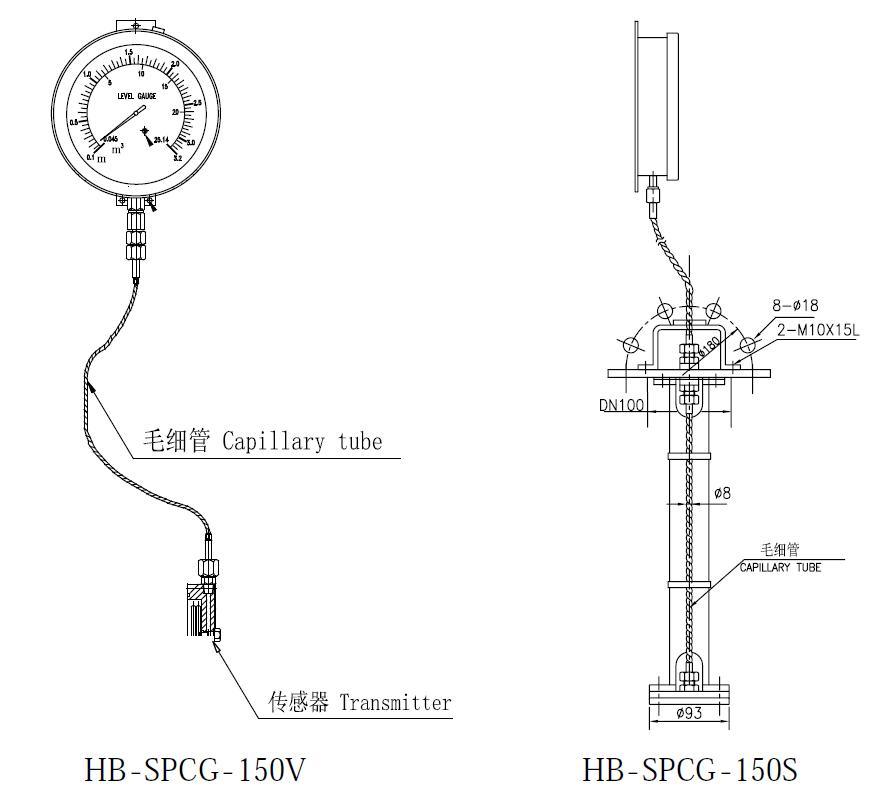

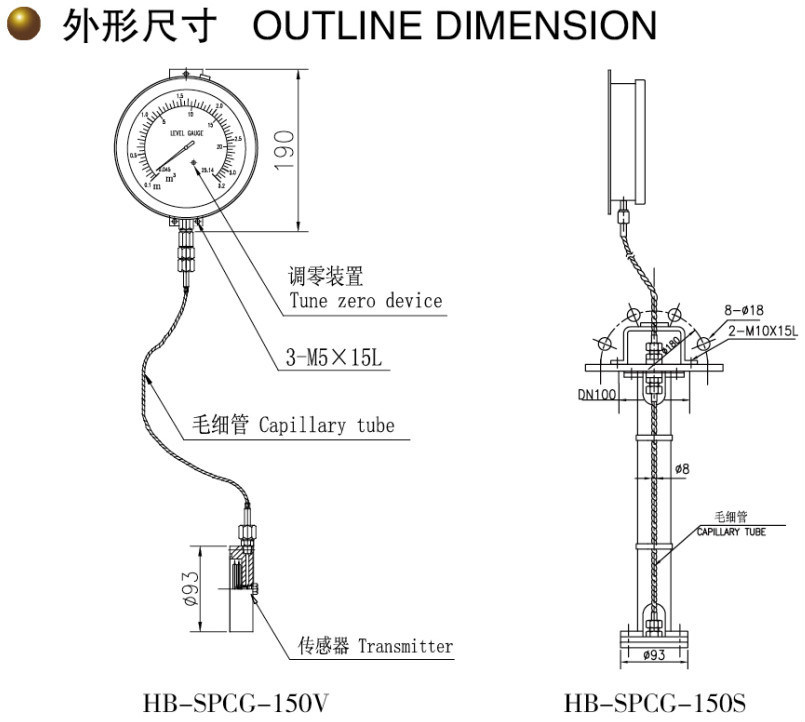

Sketch:

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:
Class certificate: CCS (Type approval)
