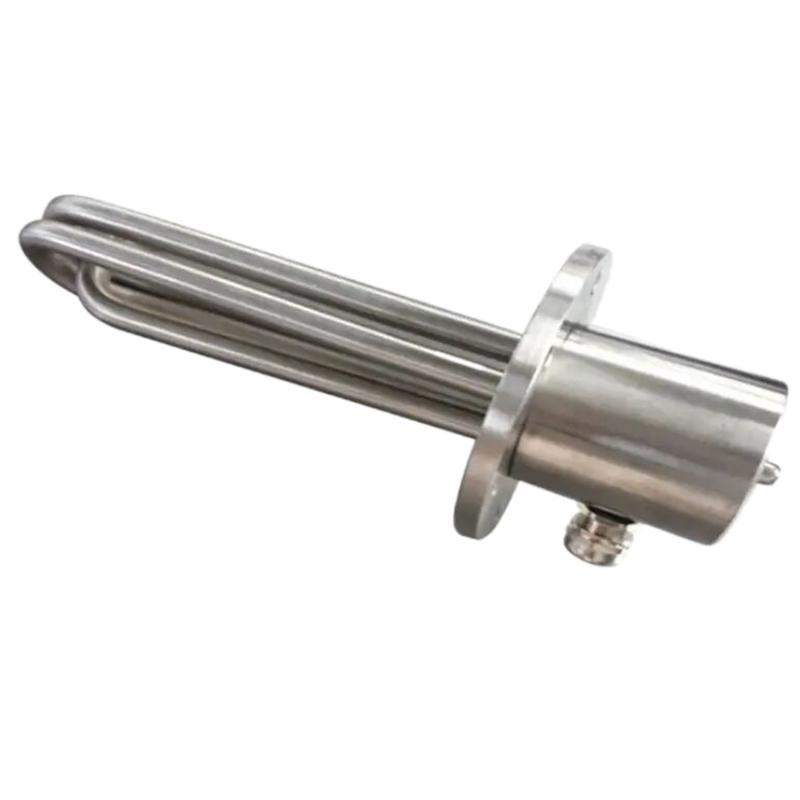

Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • RoHS, CB, CCC, ISO9001, CE

  • Flange Tube Water Heater

  • Ni-Cr Wire, Incoloy800, Incoloy840

  • Tubular Heating Elements

  • Tubular

  • Oil, Water, Chemical, Petroleum Heater

Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank
Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank

Product Parameters

Specification
RY type electric heater can be used to heat lube oil and water in ships and other industrial equipment.

Main technical specification:
Model A (mm) B (mm) Power source Rated power consumption (W) Wiring type Material of casing
24V 110V 220V 380V

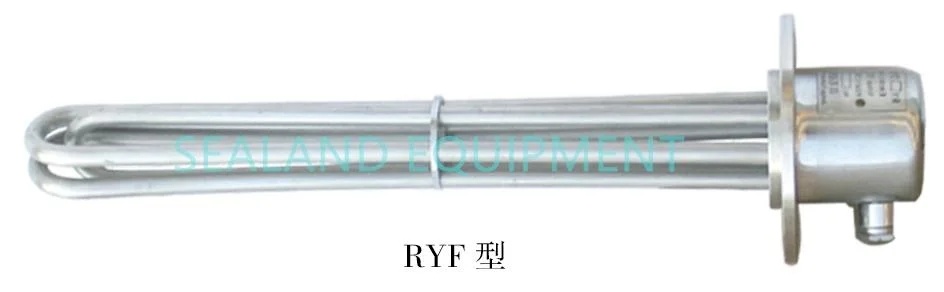

RYF
RYL		 220 296 AC
DC		 350 in parallel Stainless steel
600
600 in series
300 376 1000 in parallel
1000 in series
390 466 1500 in parallel
1500 in series
490 566 in parallel
2000 in series
590 666 in parallel
2500 in series
690 766 in parallel
3000 in series
333 410 AC 4000 2000
483 560 4500 3000
623 700 5000 4000
773 850 5000

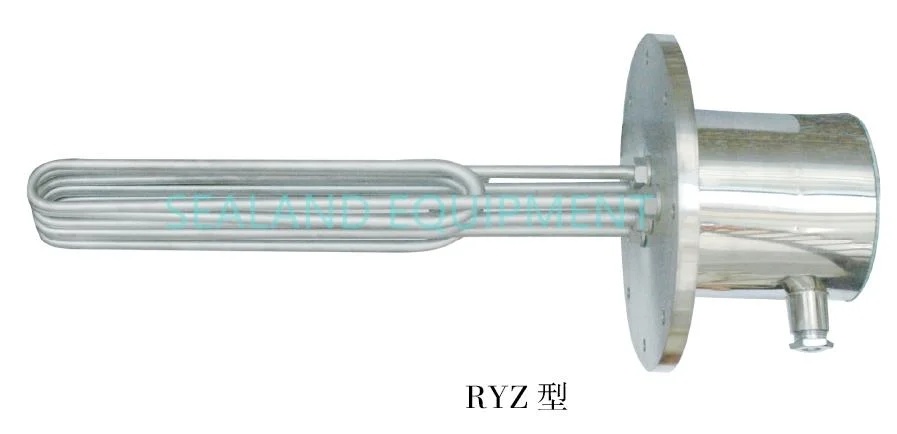

RYZ 12~60KW heater can be customized for users.


Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler TankStainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank

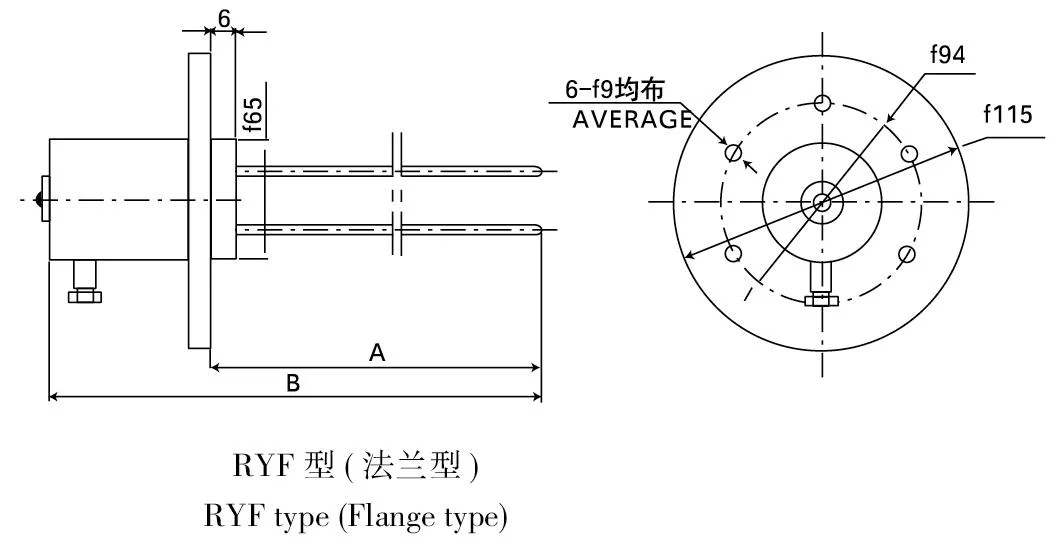

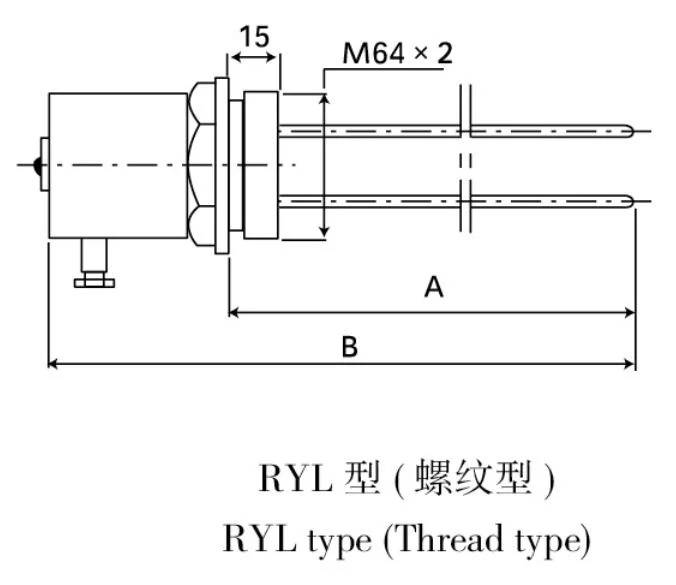

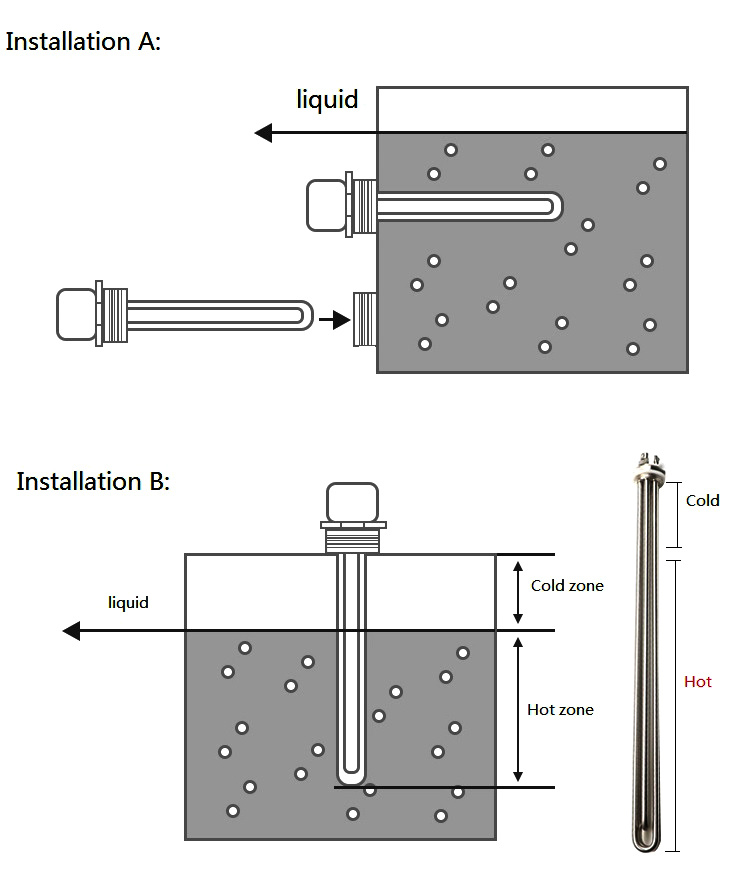

Sketches:

Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank

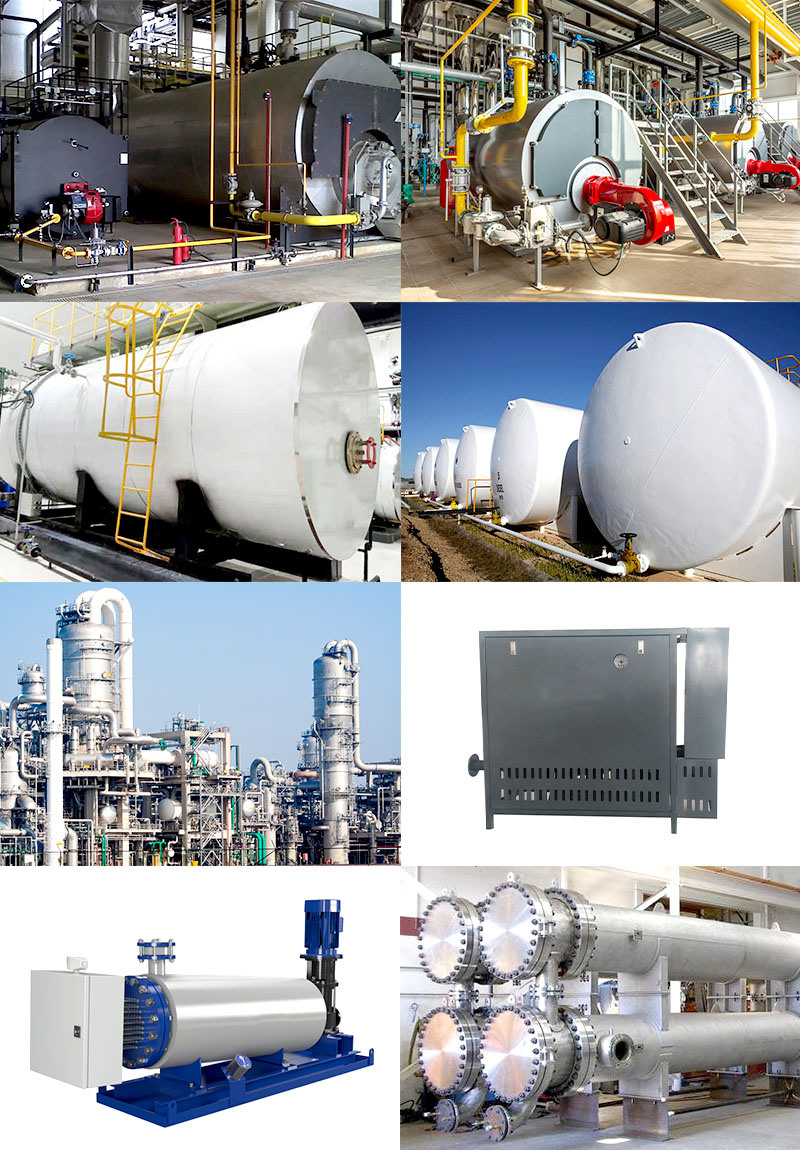

Products Application

Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler TankStainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank
Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank


Stainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler TankStainless Steel Flanged Water Immersion Heater 9kw Tubular Heating Element for Boiler Tank
