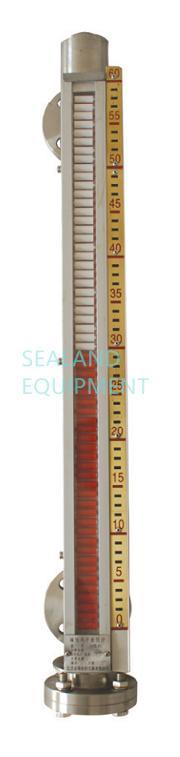

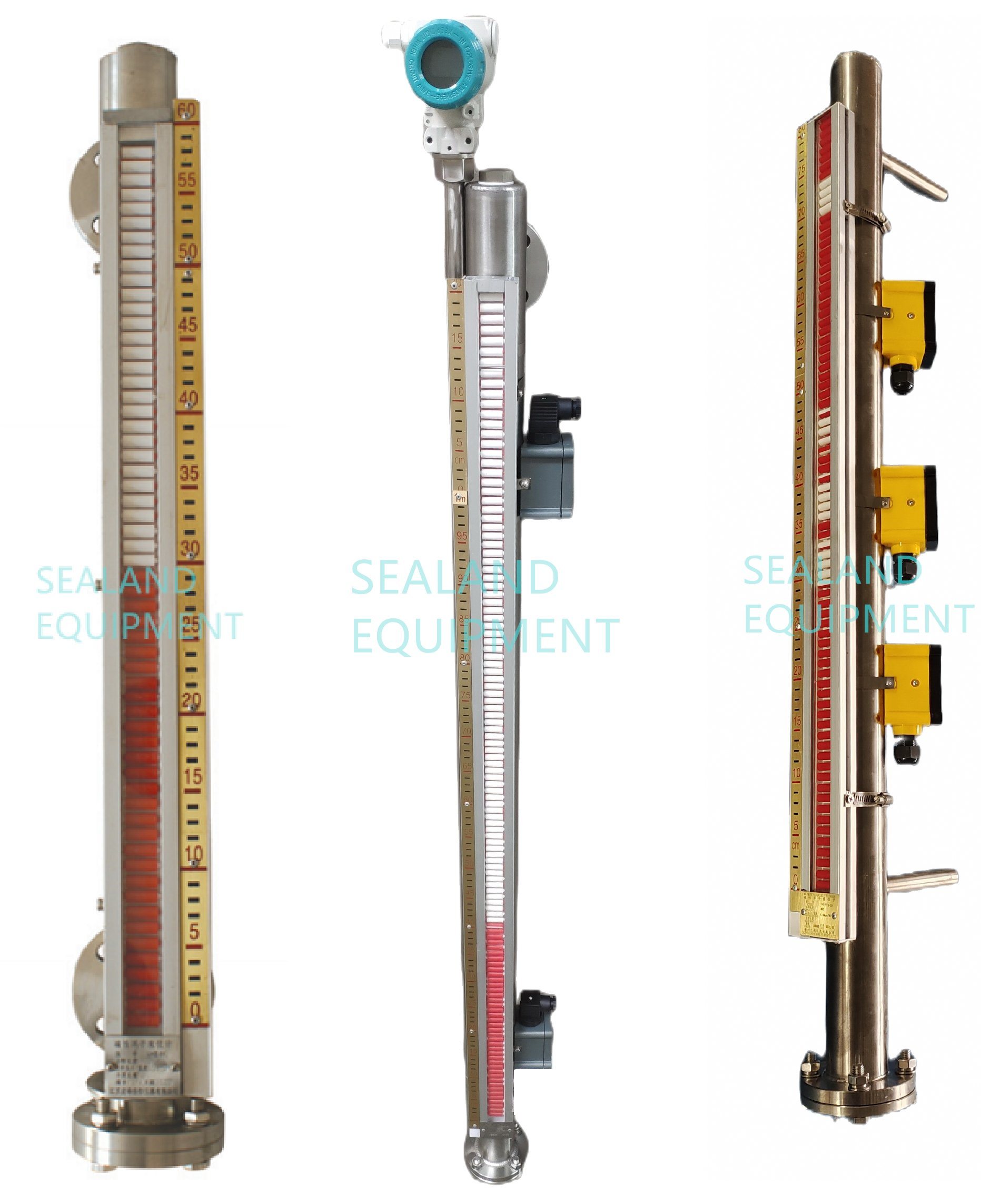

Uhz-511 Magnetic Float Type Level Gauge

Quantity:
Availability:





Inquire Add to Basket

Principle:
Communicating Vessels
Range:
300-6000mm
Measurement Accuracy:
+/- 20mm
Kind:
Magnetic Flap
Structure:
Split Type
Warranty:
1 Year

Product Description

UHZ-511 type magnetic float type level gauge can be used to measure and control level of the tank in ship and other industrial equipment.

Main technical specification:

Model	UHZ-511
Installation	side mounting
Indication accuracy	±20mm
Nominal length	300~6000mm
Medium gravity	≥ 0.5
Working pressure	1.0 (1.6, 2.5)MPa
Medium temperature	≤120ºC
Connection flange	GB2506-2005 or other as request

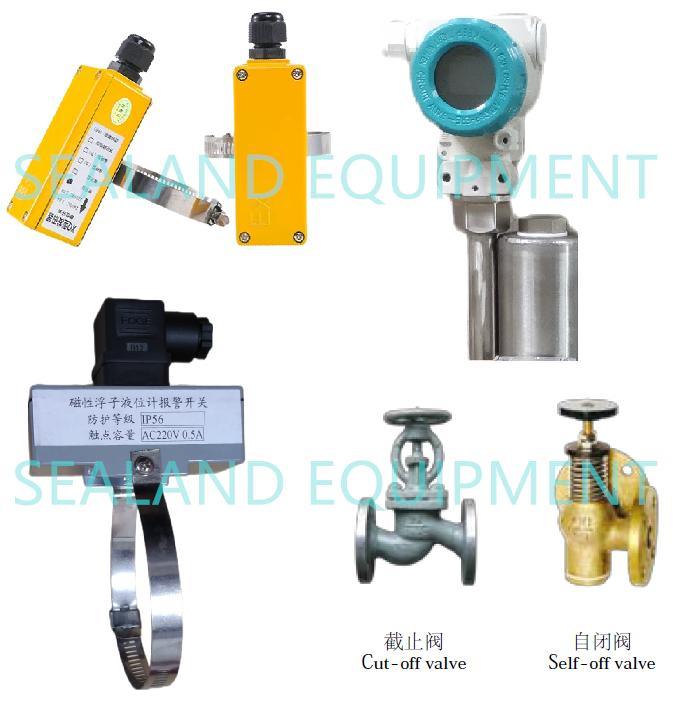

Alarm switch (option) Suffix -J	AC220V 1.0A (SPDT hold type)

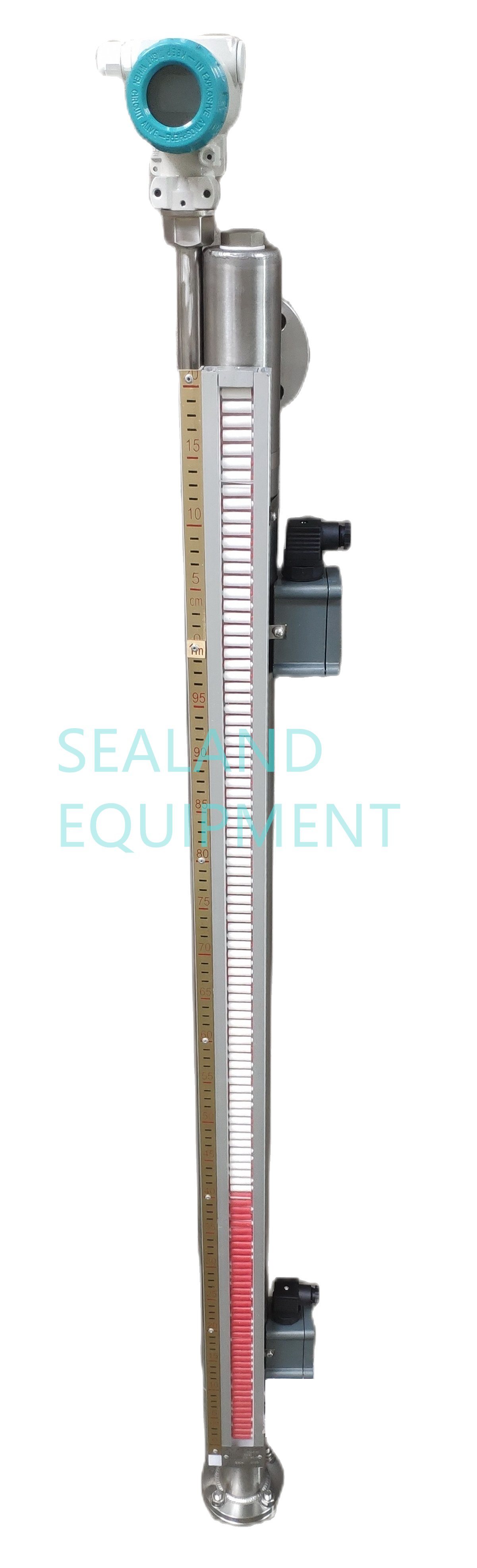

Output signal (option) Suffix -X or -XB	DC24V 4~20mA with output signal, ex-proof type(Ex ia II CT6)
Matched valve (option)	shutoff valve, self-closing valve

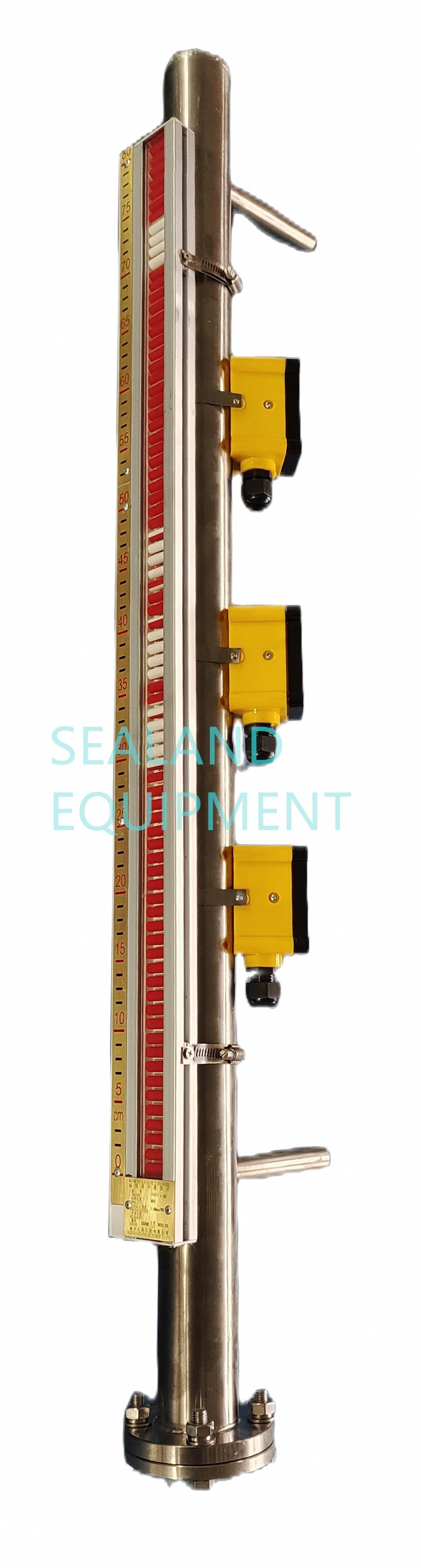

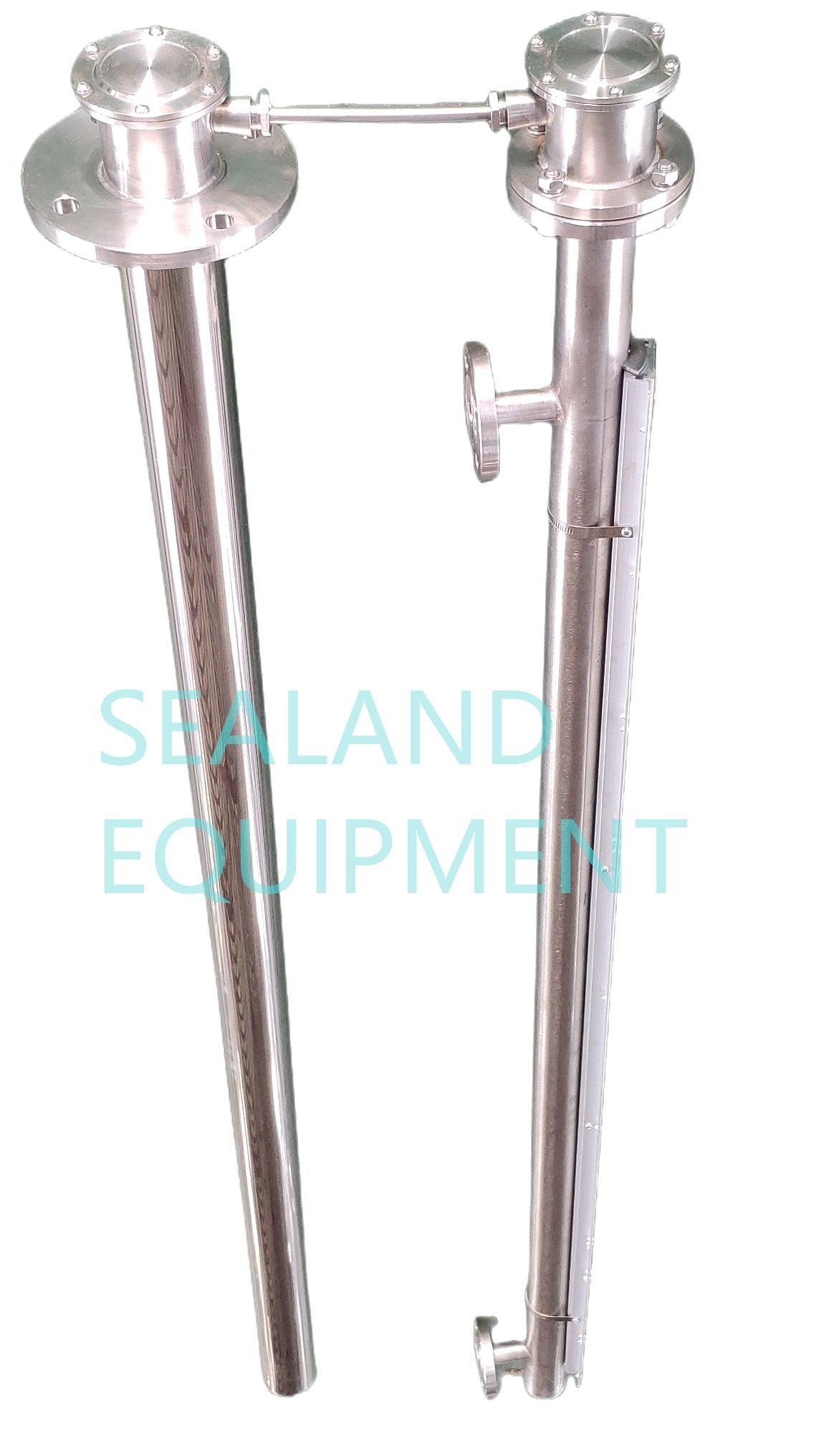

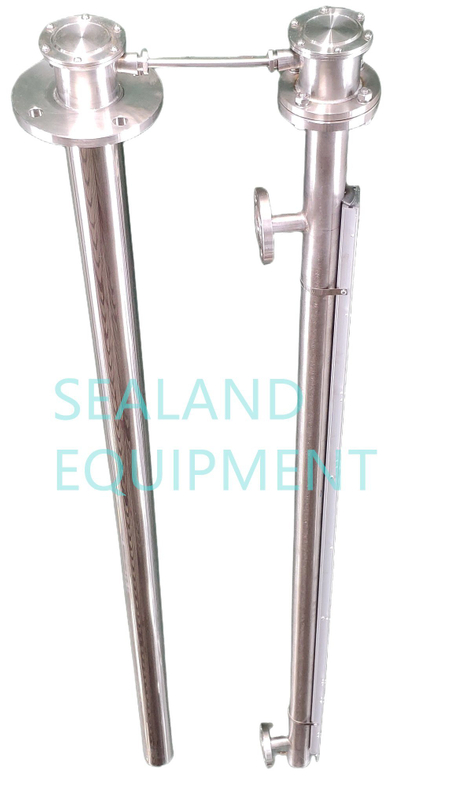

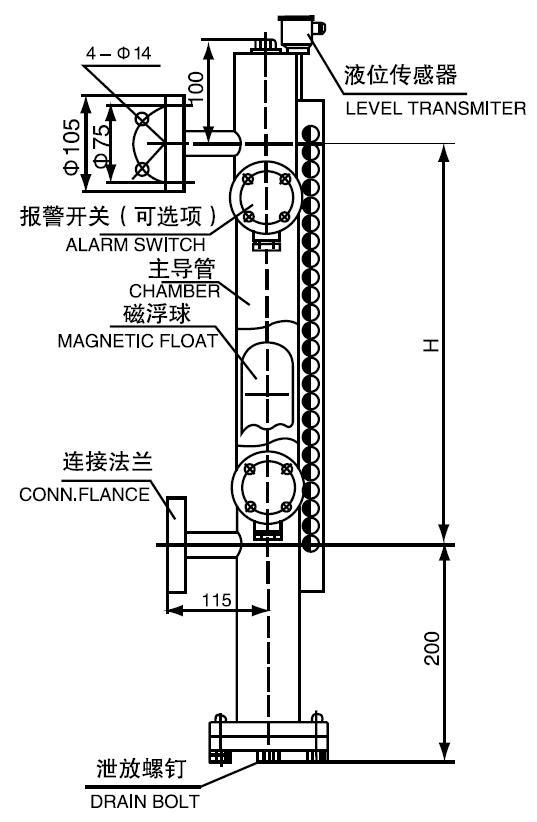

UHZ-511 Side Mounted Magnetic Float Level Gauge For Towers/Tanks

THGL-100 Submersible Level Transmitter designed for accurate measurement of the depth and level of liquids in many applications, it can be submerged into liquids directly to measure level from the transmitter bottom to the liquids surface.

It uses high performance piezoresistive pressure sensor as sensing element and the measurement is based on the principle that the measured liquids static pressure is positive proportional to the level depth accurately, and convert the pressure signals into standard electrical signals output by amplifier circuit board to measure precise level depth. After built-in temperature compensation and linear calibration, the converted standard current, voltage, RS 485 and other signals output can be directly connected to PLC or DCS for the operations and process control at work sites.

HGL-100 is widely used for water and other liquid level measurement and control in fields of borehole, environmental protection, petroleum, chemicals industry, power station, urban water supply, drainage and hydrology and other industrial process control.

Uhz-511 Magnetic Float Type Level Gauge

Certificates:
Class certificate: CCS, BV (Type approval)

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT
