Principle:
Communicating Vessels
Range:
300-6000mm
Measurement Accuracy:
+/- 20mm
Kind:
Magnetic Flap
Structure:
Split Type
Warranty:
1 Year

Product Description

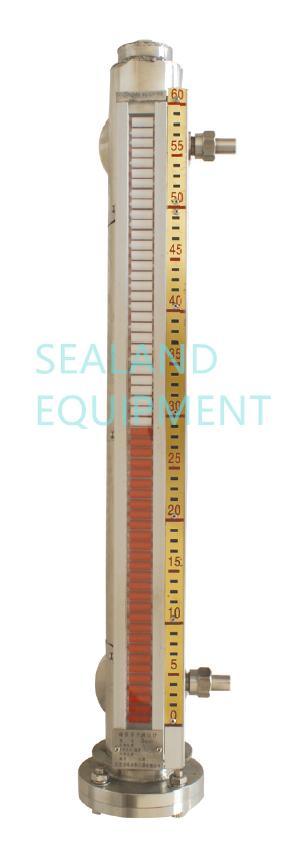

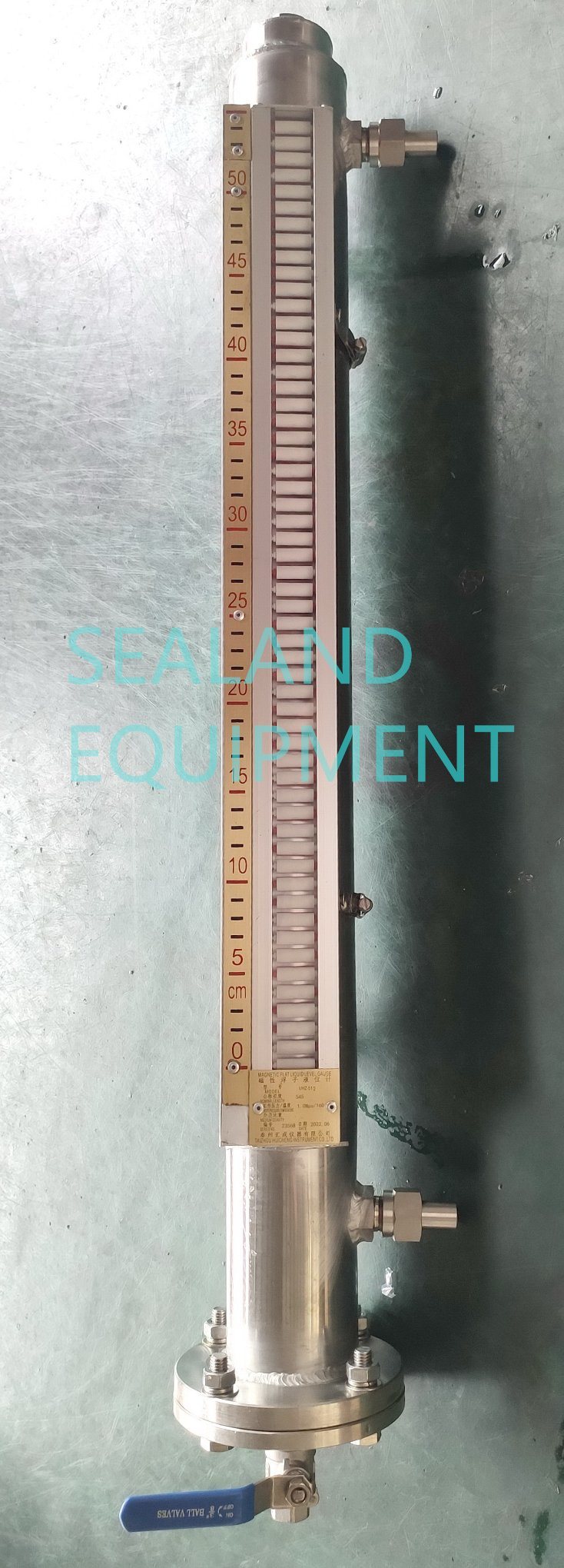

UHZ-512 type magnetic float level gauges are used to measure and control level of the liquid in the tank with low freezing point and poor fluidity in ship and other industrial equipment.

Main technical specification:

Model	UHZ-512 (jacket type)
Installation	side mounting
Indication accuracy	±20mm
Nominal length	300~6000mm
Medium gravity	≥ 0.6
Working pressure	1.0 (1.6, 2.5)MPa
Medium temperature	≤200ºC
Medium viscosity	≤0.02Pa.S
Steam pressure	≤0.8MPa
Connection flange	GB2506-2005 or other as request

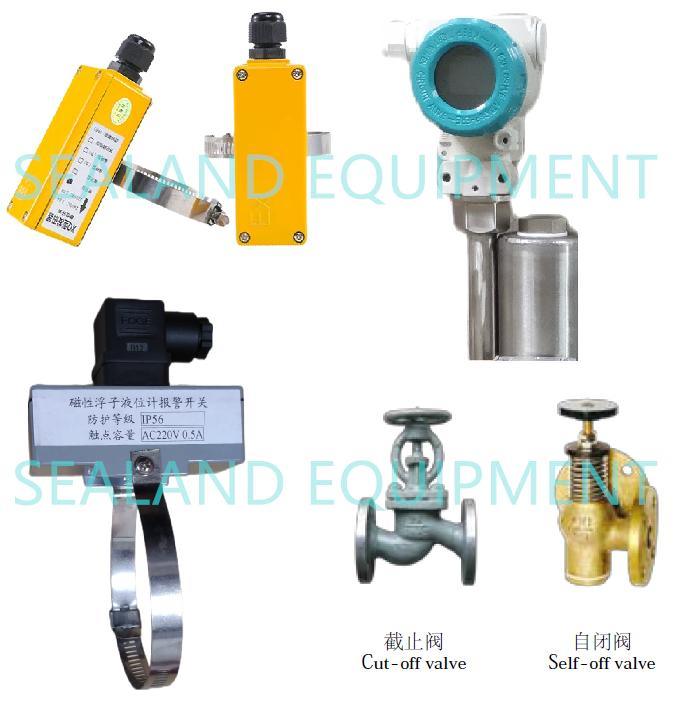

Alarm switch (option) Suffix -J	AC220V 1.0A (SPDT hold type)
Output signal (option) Suffix -X or -XB	DC24V 4~20mA with output signal, ex-proof type(Ex ia II CT6)
Matched valve (option)	shutoff valve, self-closing valve

Order note: Please advise nominal length, connection flange size and other request when place order.

Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil, Water or Steam

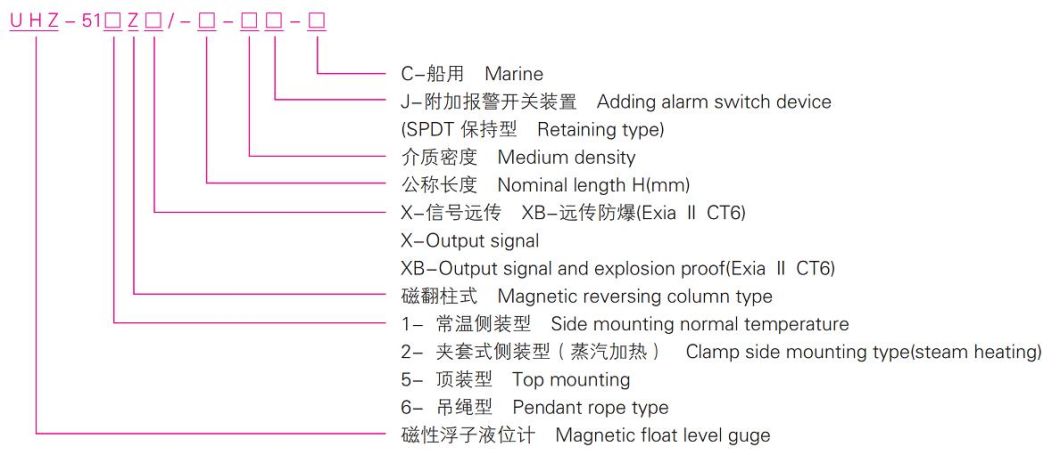

Model sign:
Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil, Water or Steam

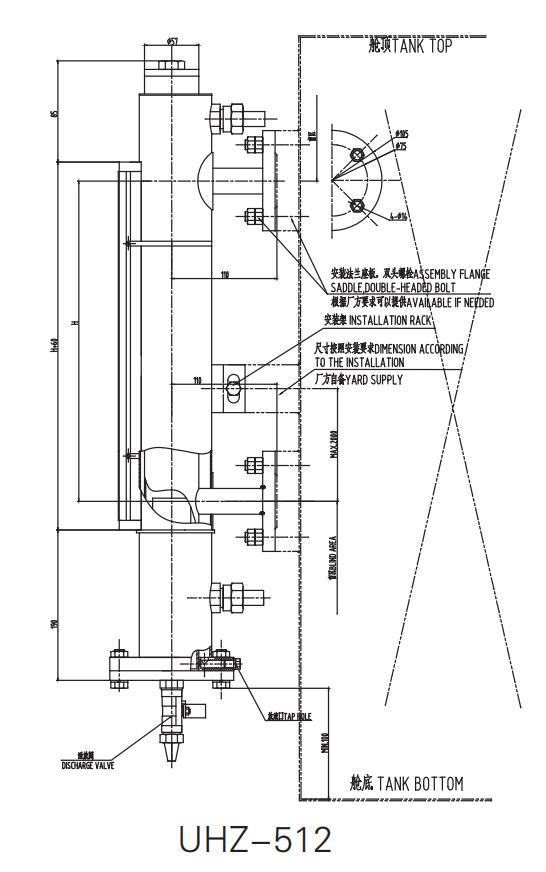

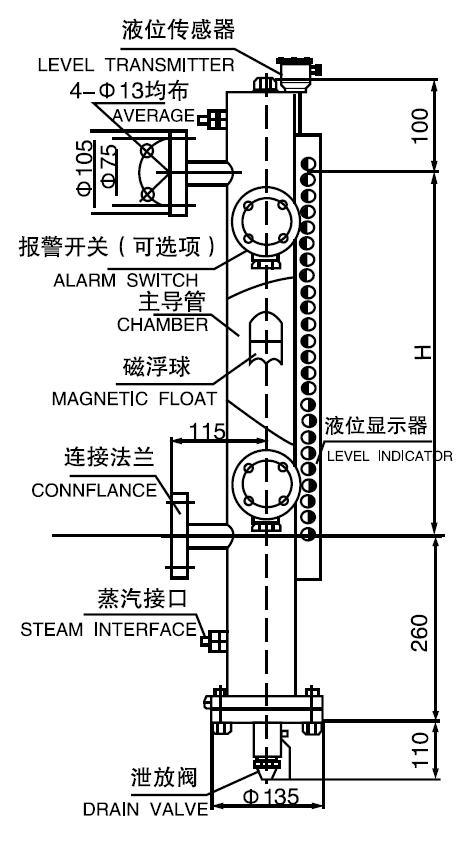

Sketches:

Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil, Water or Steam

Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:
Class certificate: CCS, BV (Type approval)
