Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • Communicating Vessels

  • 500-3000mm

  • +/- 20mm

  • Magnetic Flap

  • Split Type

  • 1 Year

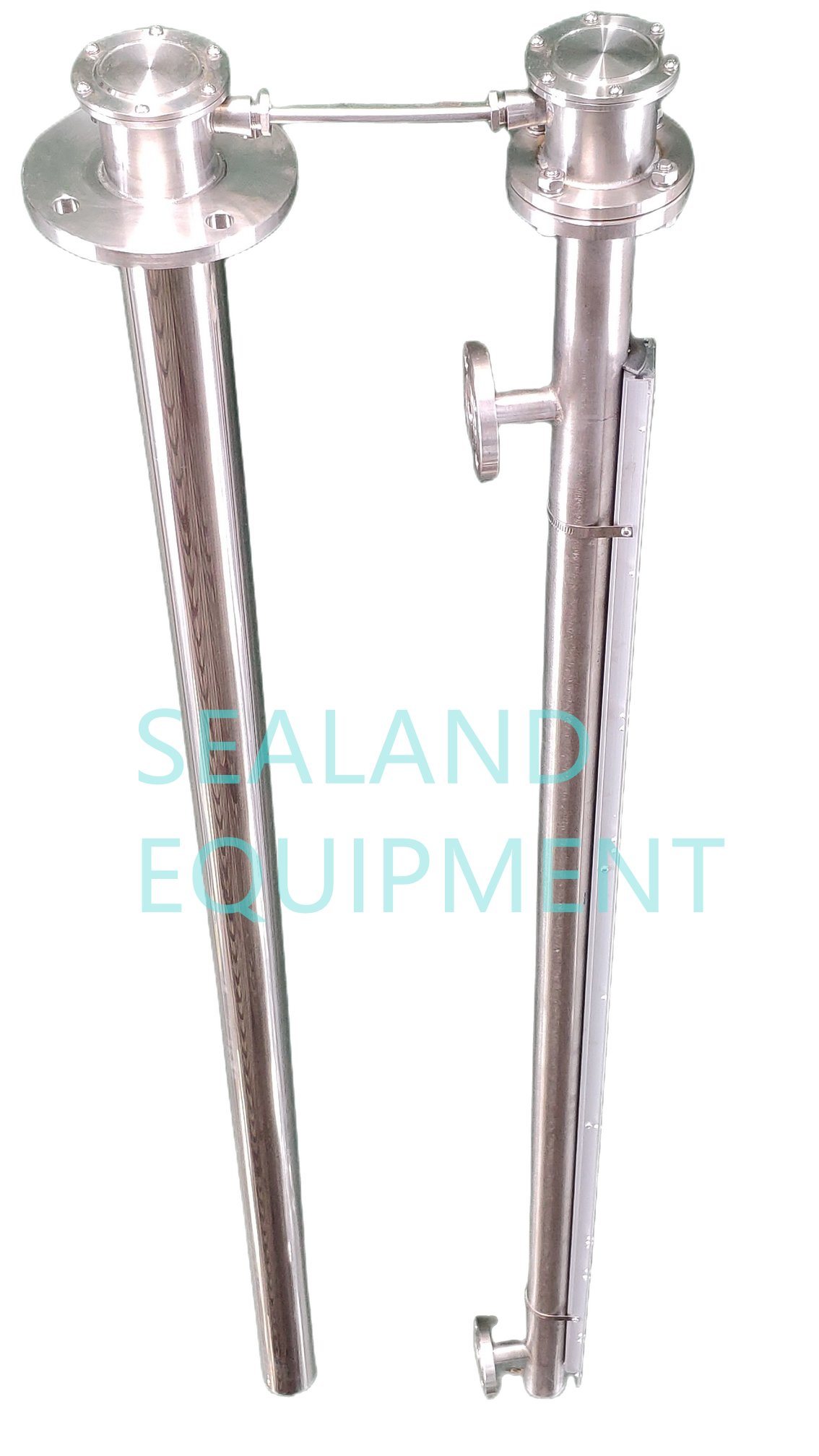

UHZ-515 type magnetic float type level gauges are used to measure and control liquid level in underground tank in ship and other industrial equipment.

Main technical specification:
Model UHZ-516
Installation side mounting
Indication accuracy ±20mm
Nominal length 500~6000mm
Medium gravity >0.5
Working pressure 1.0 (1.6, 2.5)MPa
Medium temperature ≤250ºC
Medium viscosity ≤0.01Pa.S
Connection flange GB2506-2005 or other as request
Order note: Please advise nominal length, connection flange size and other request when place order.

Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water
Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water



Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water

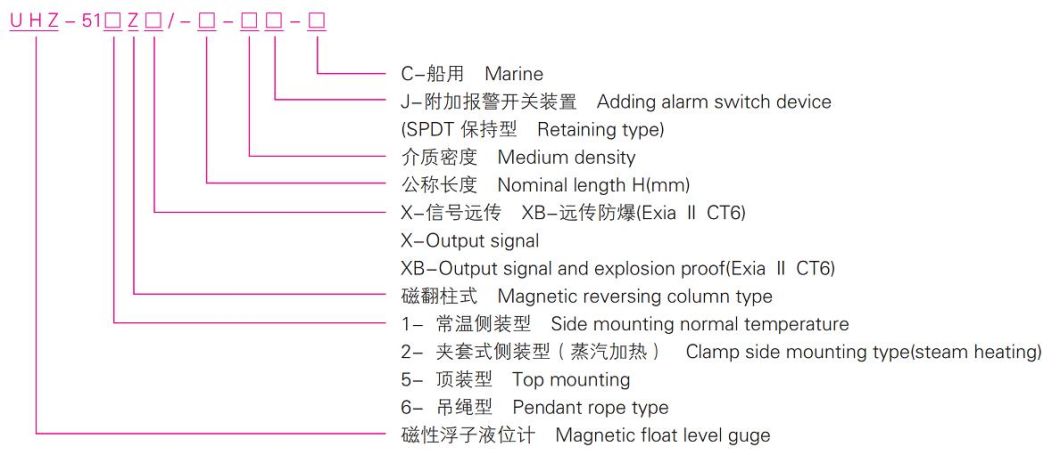

Model sign:
Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water

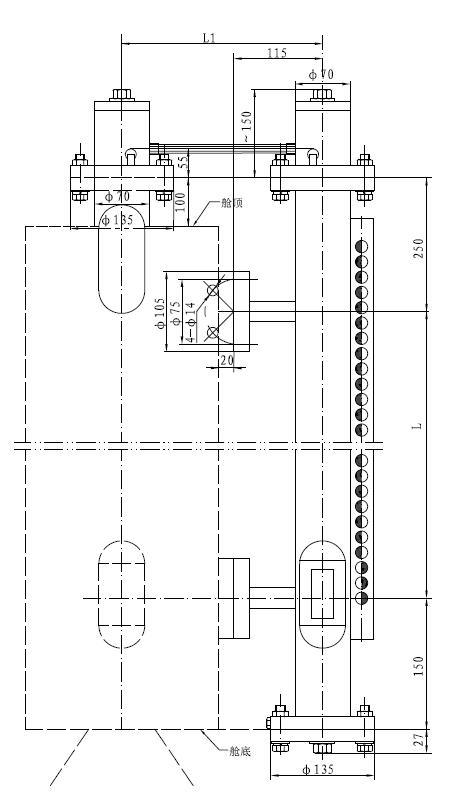

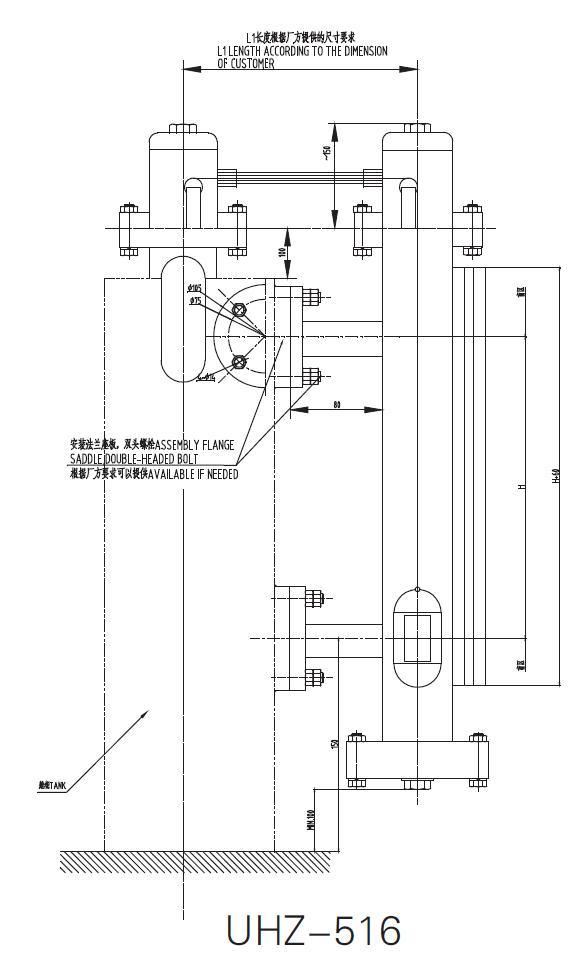

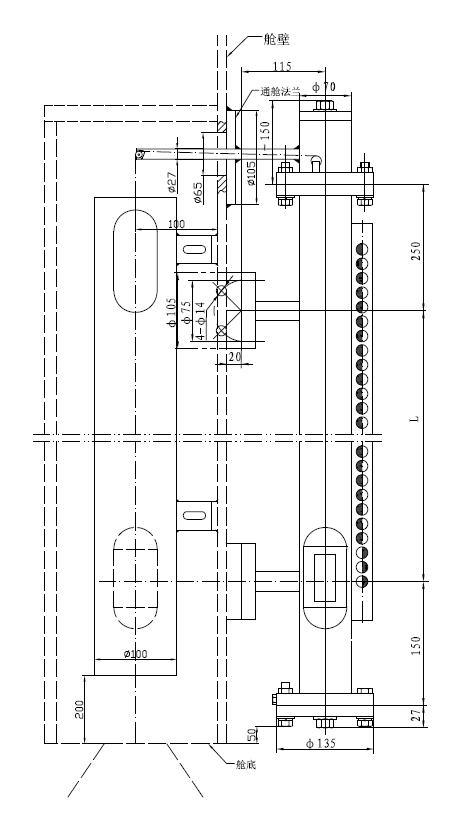

Sketches:

Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water
Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water
Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water


Packing & delivery:
Packing: carton or wooden case
Shipping: by air, sea, or courier DHL, UPS, SF, FedEx-TNT

Certificates:

Wholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or WaterWholesale Hi-Quality OEM Magnetic Float Type Level Gauge for Oil or Water
