| Quantity: | |
|---|---|
Communicating Vessels
500-3000mm
+/- 20mm

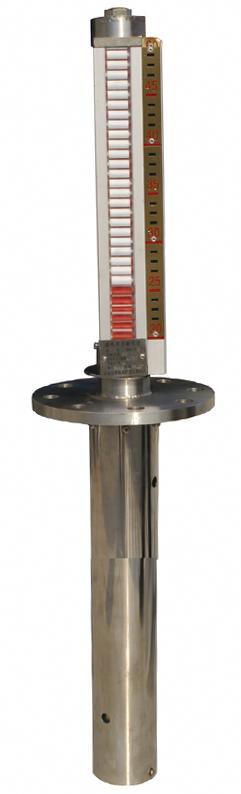

Magnetic Flap
Split Type
1 Year

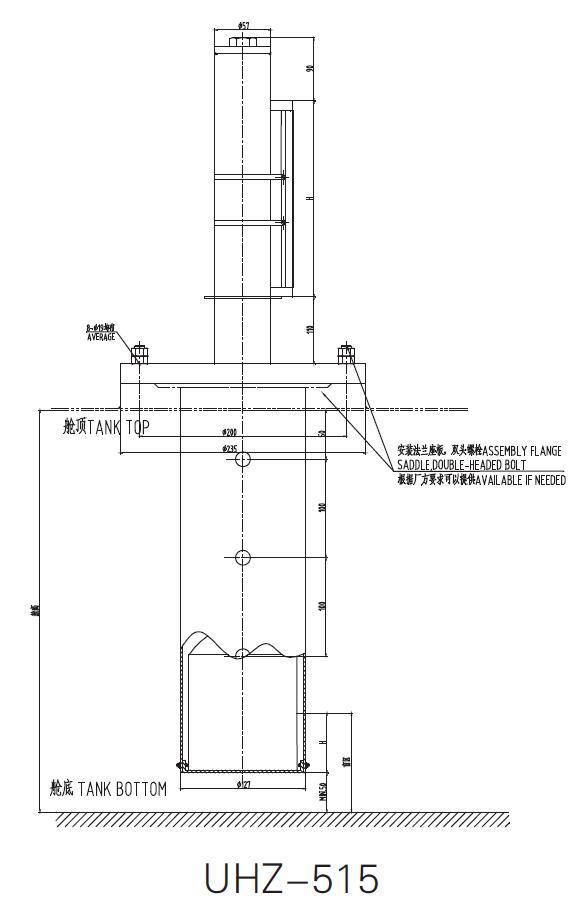

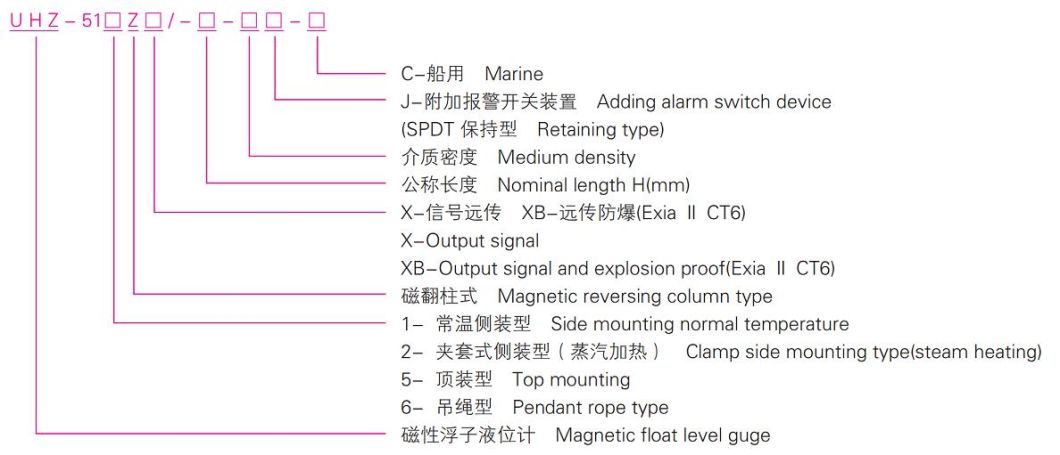

| Model | UHZ-515 (for underground tank) |
| Installation | top mounting |
| Indication accuracy | ±20mm |
| Nominal length | 500~3000mm |
| Medium gravity | >0.8 |
| Working pressure | ≤1.6MPa |
| Medium temperature | ≤150ºC |
| Medium viscosity | ≤0.01Pa.S |
| Connection flange | GB2506-2005 or other as request |

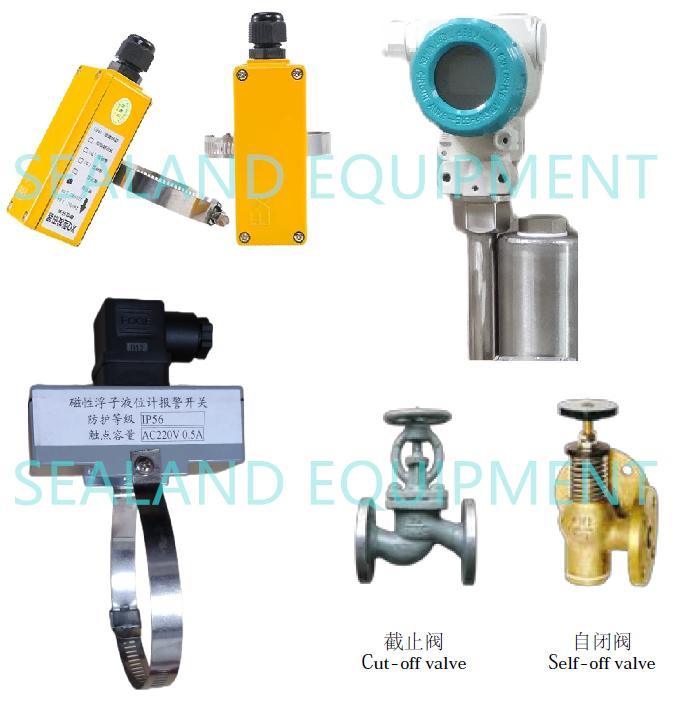

| Alarm switch (option) Suffix -J | AC220V 1.0A (SPDT hold type) |
| Output signal (option) Suffix -X or -XB | DC24V 4~20mA with output signal, ex-proof type(Ex ia II CT6) |
| Matched valve (option) | shutoff valve, self-closing valve |
Packing & delivery:
| Model | UHZ-515 (for underground tank) |
| Installation | top mounting |
| Indication accuracy | ±20mm |
| Nominal length | 500~3000mm |
| Medium gravity | >0.8 |
| Working pressure | ≤1.6MPa |
| Medium temperature | ≤150ºC |
| Medium viscosity | ≤0.01Pa.S |
| Connection flange | GB2506-2005 or other as request |
| Alarm switch (option) Suffix -J | AC220V 1.0A (SPDT hold type) |
| Output signal (option) Suffix -X or -XB | DC24V 4~20mA with output signal, ex-proof type(Ex ia II CT6) |
| Matched valve (option) | shutoff valve, self-closing valve |
Packing & delivery:
