Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor
Home » Products » Temperature instrument and sensor » Temperature controller/ switch » Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

loading

Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • Customized

  • ISO9001, CCS

  • Jx

  • Scale Graduation

  • Normally Open

  • Industrial

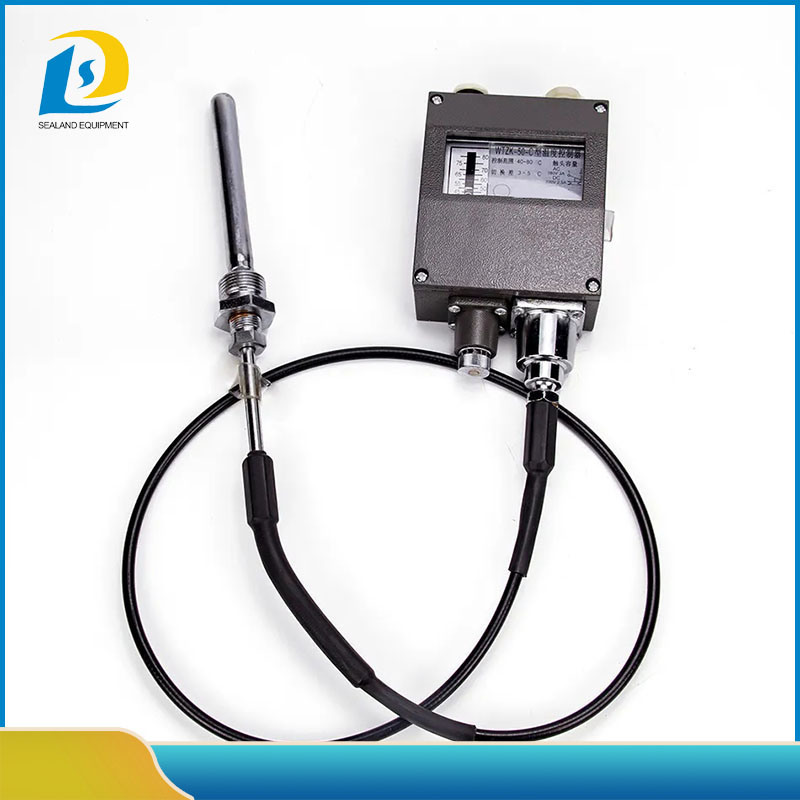

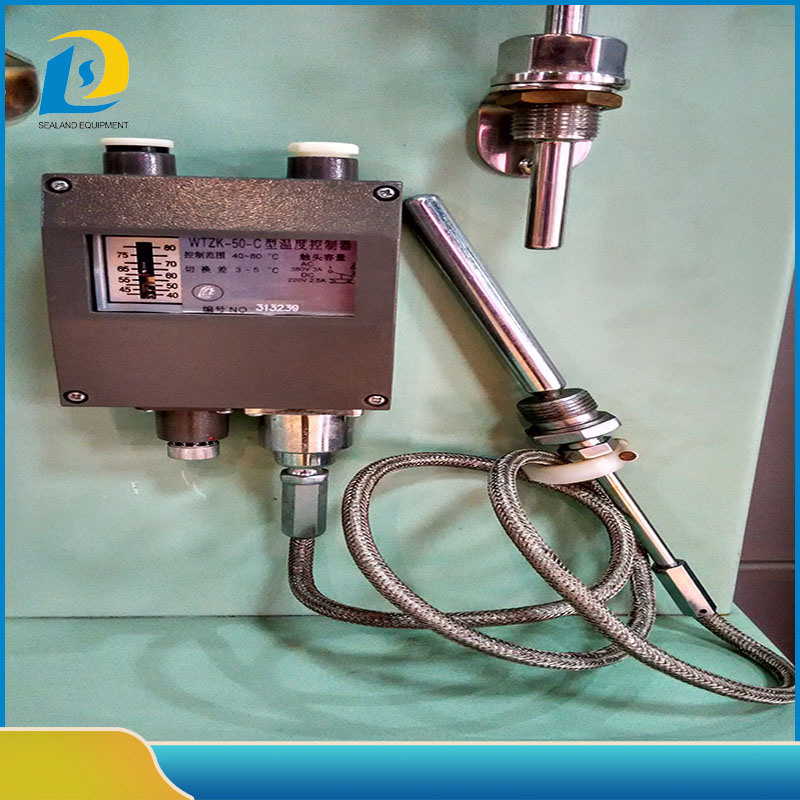

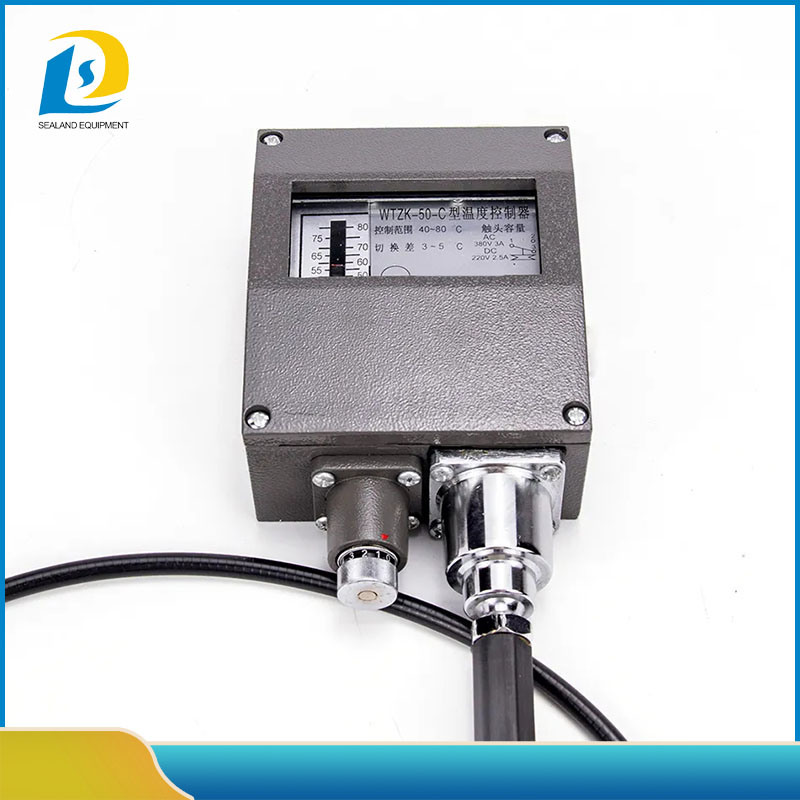

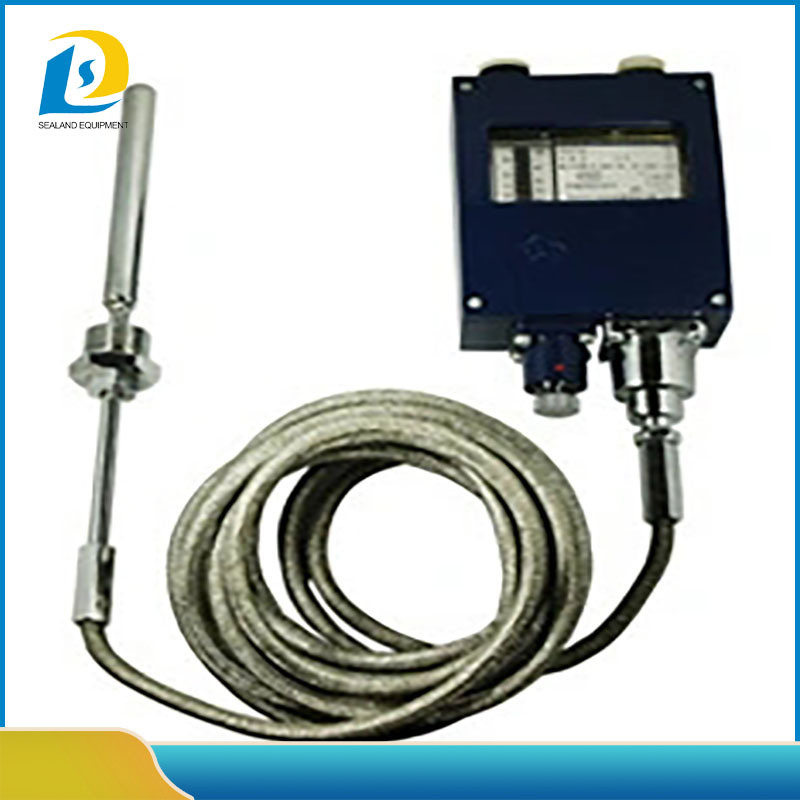

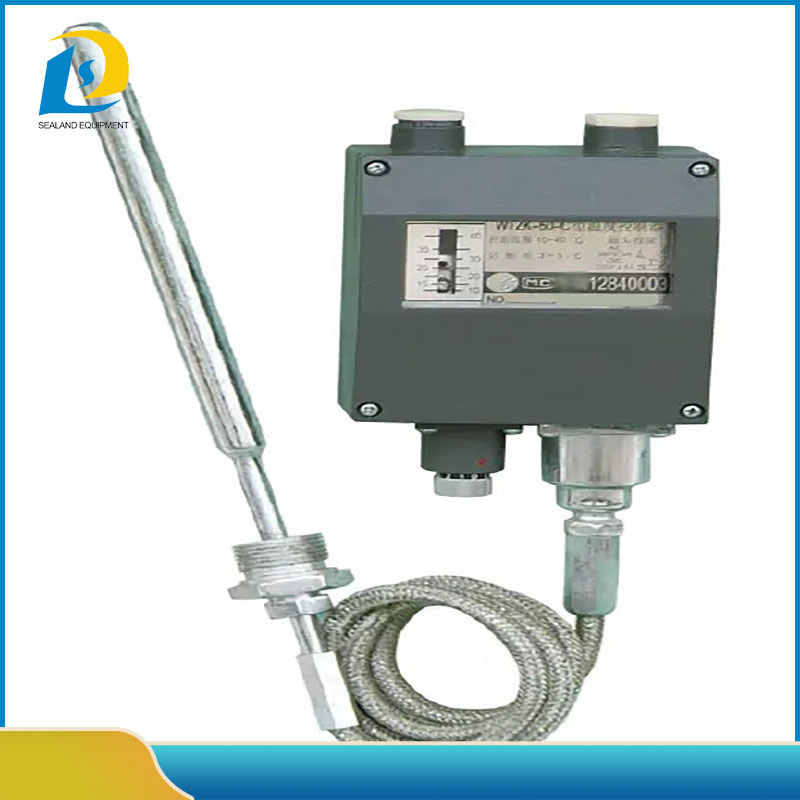

Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

Product Parameters

Production description:
WTZK type temp. controller is an electrical switch that can make circuit close or open following change of controlled medium temp. It can be used to support performance structure in ship, freeze instrument or other industrial equipment by controlling temp. of gas, liquid or steam through two position type.

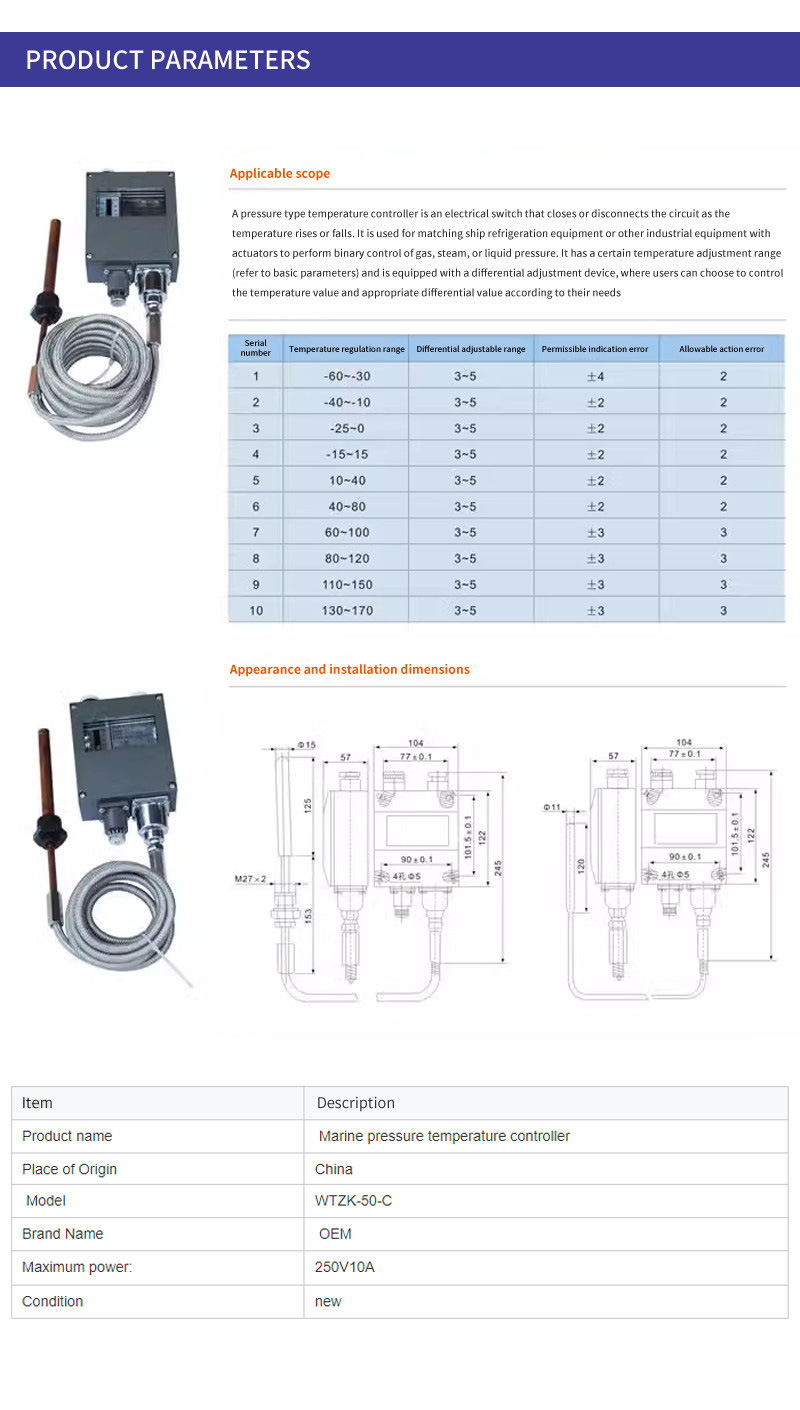

Main technical specification:
Temperature regulating range (ºC) -25~0, -15~+15, 10~40, 40~80, 60~100, 80~120, 110~150, 130~170
Switching error (ºC) 3~5
Accuracy (ºC) ±2
Repeatability error ≤2
Contact capacity AC380V 3A, DC220V 2.5A
Protection class IP44

Order note: Normally connection thread is M27*2, capillary length 5 meters.

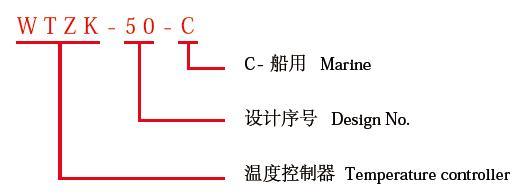

Model sign:
Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

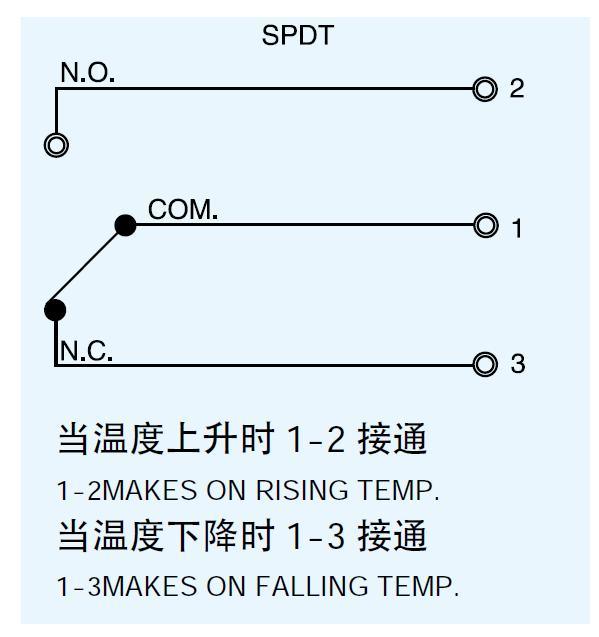

Contact form:
Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

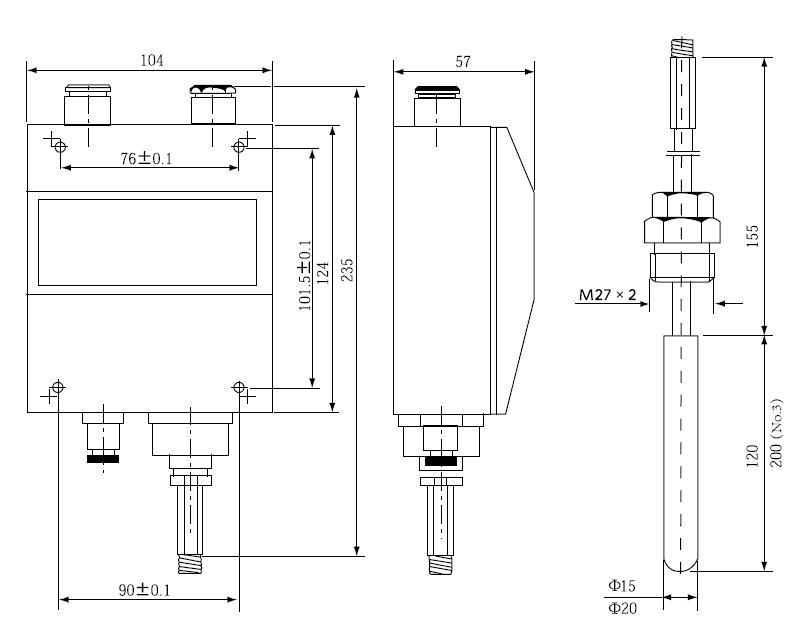

Sketch:
Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor

Wtzk-50-C High Accuracy Magnetic Micro Temperature Pressure SensorWtzk-50-C High Accuracy Magnetic Micro Temperature Pressure SensorWtzk-50-C High Accuracy Magnetic Micro Temperature Pressure SensorWtzk-50-C High Accuracy Magnetic Micro Temperature Pressure SensorWtzk-50-C High Accuracy Magnetic Micro Temperature Pressure SensorWtzk-50-C High Accuracy Magnetic Micro Temperature Pressure Sensor
