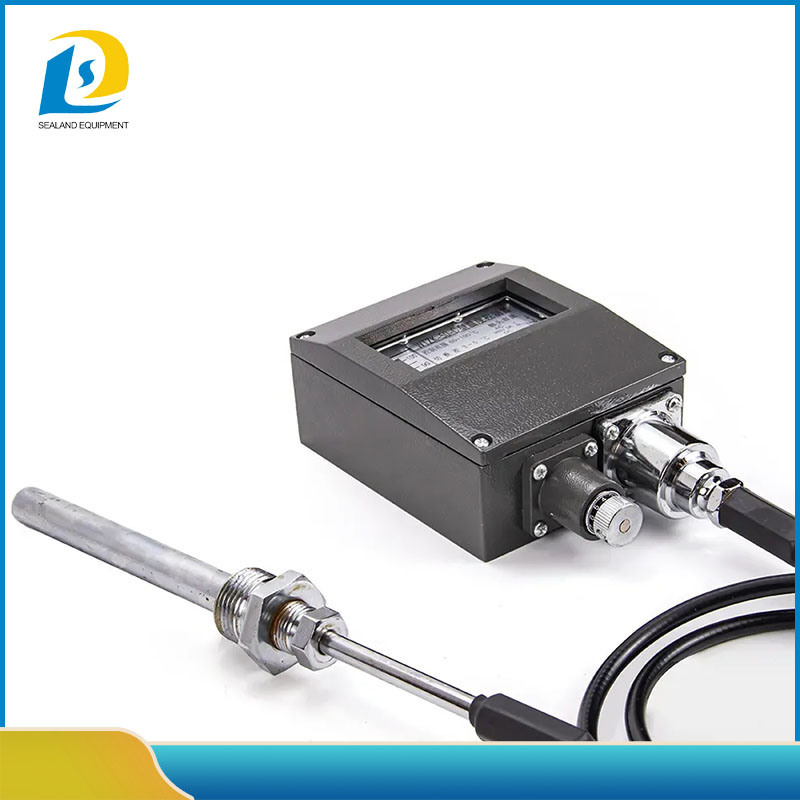

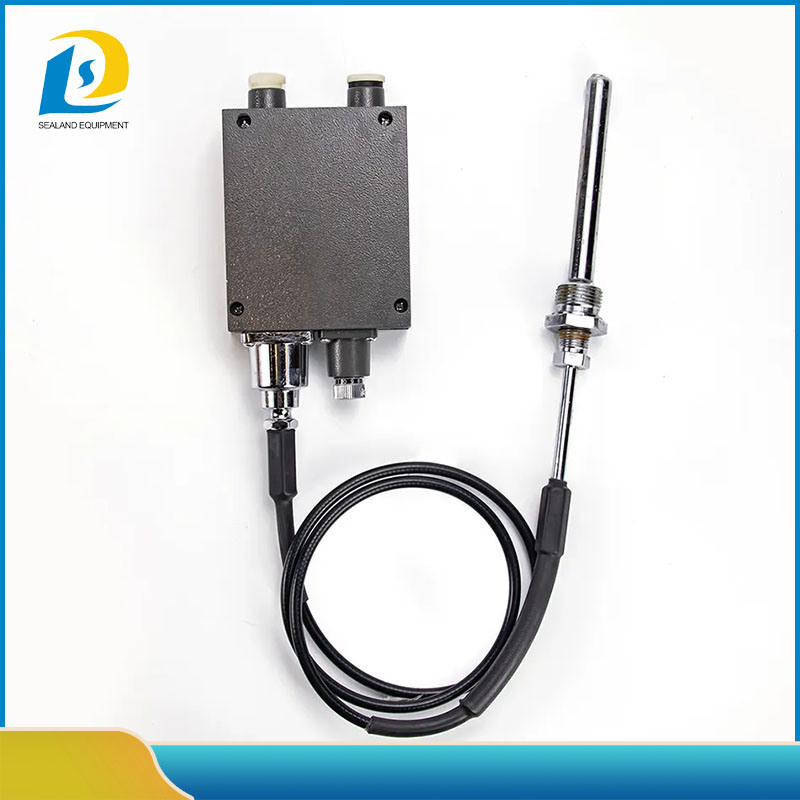

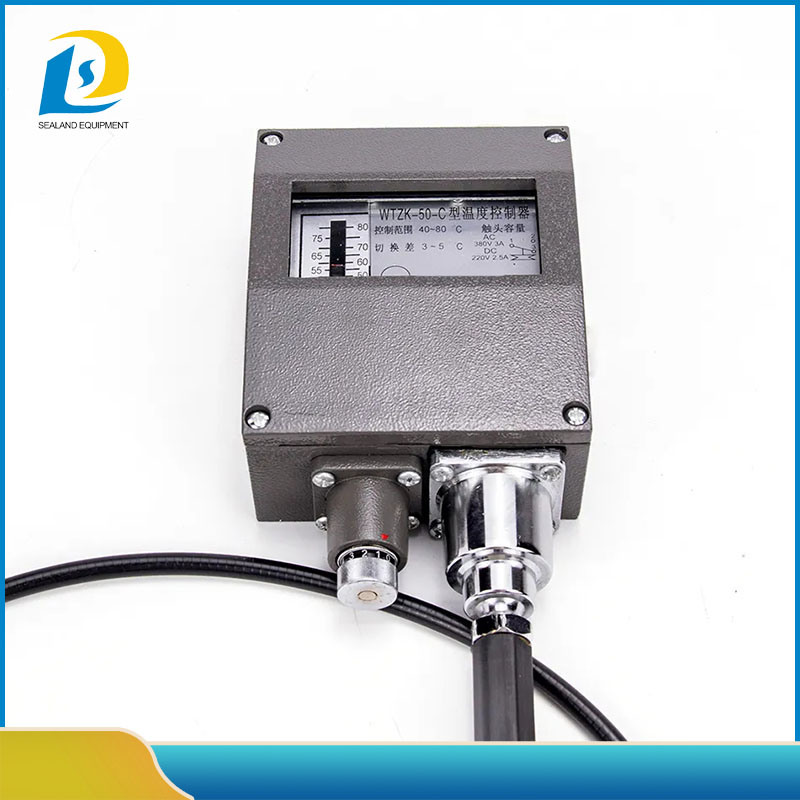

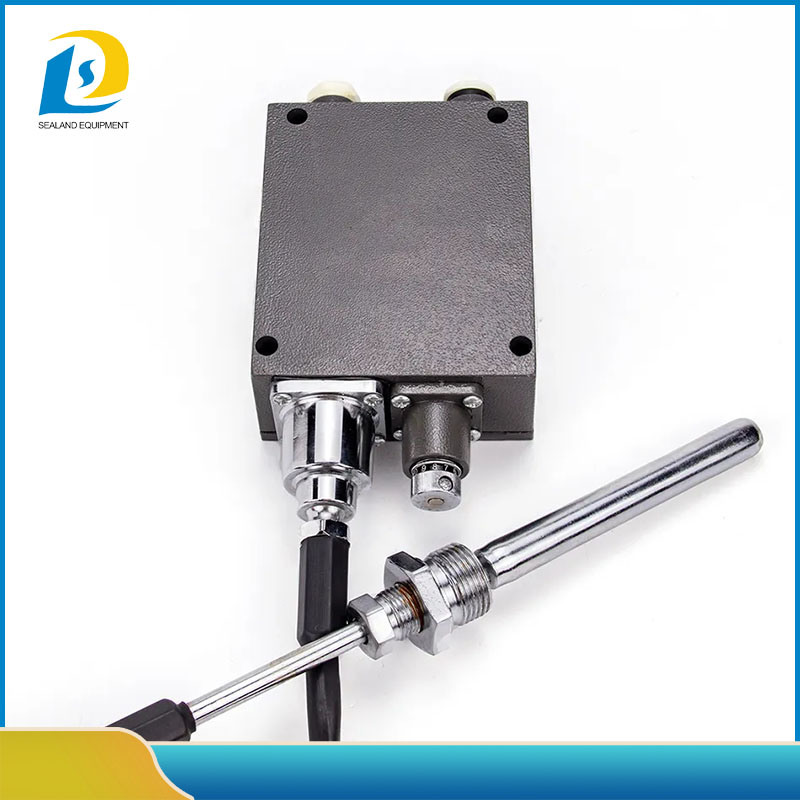

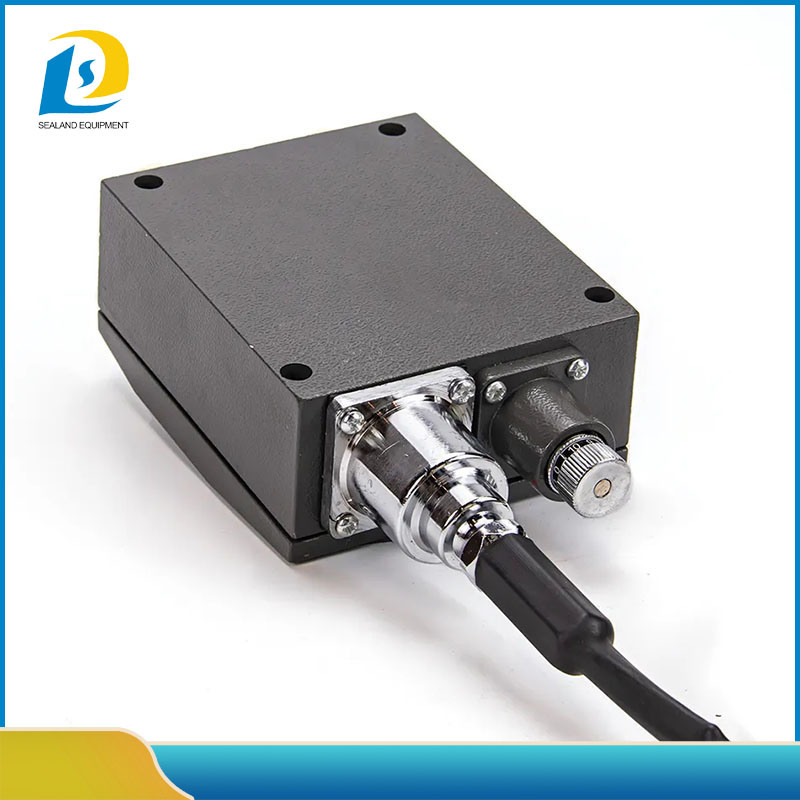

Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • Customized

  • ISO9001, CCS

  • Jx

  • Scale Graduation

  • Normally Open

  • Industrial

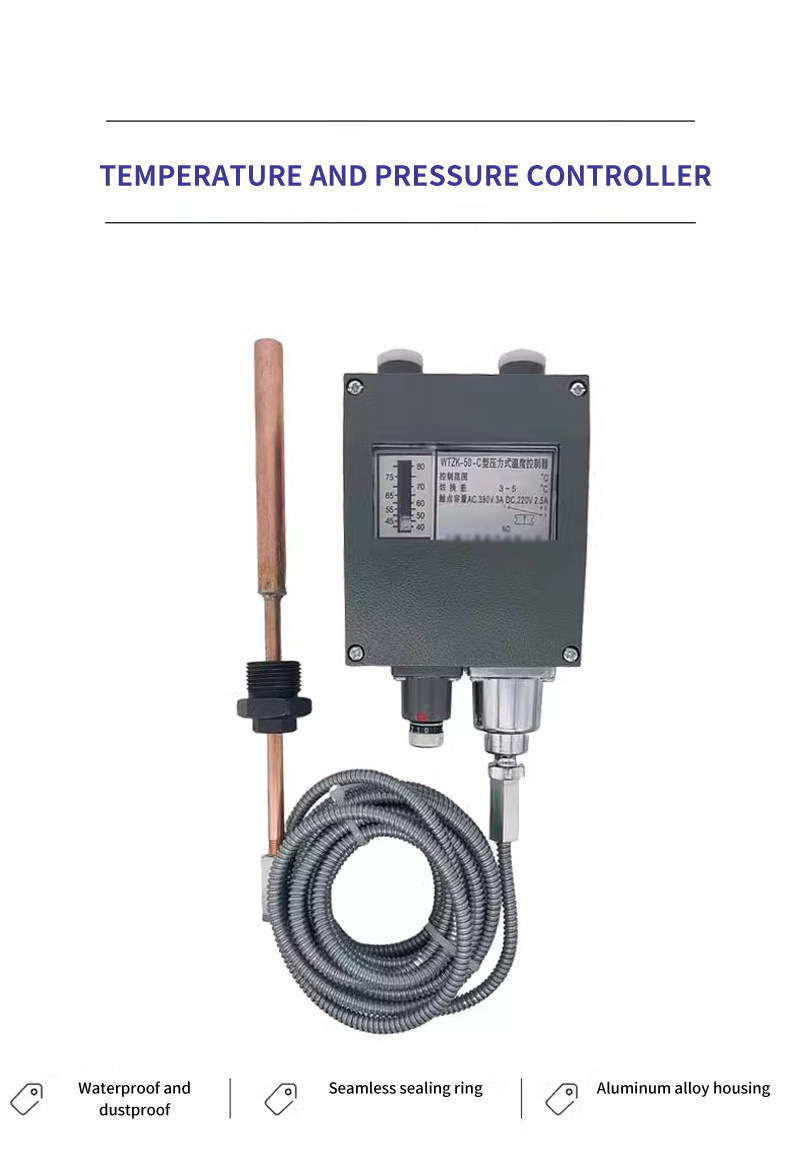

Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China

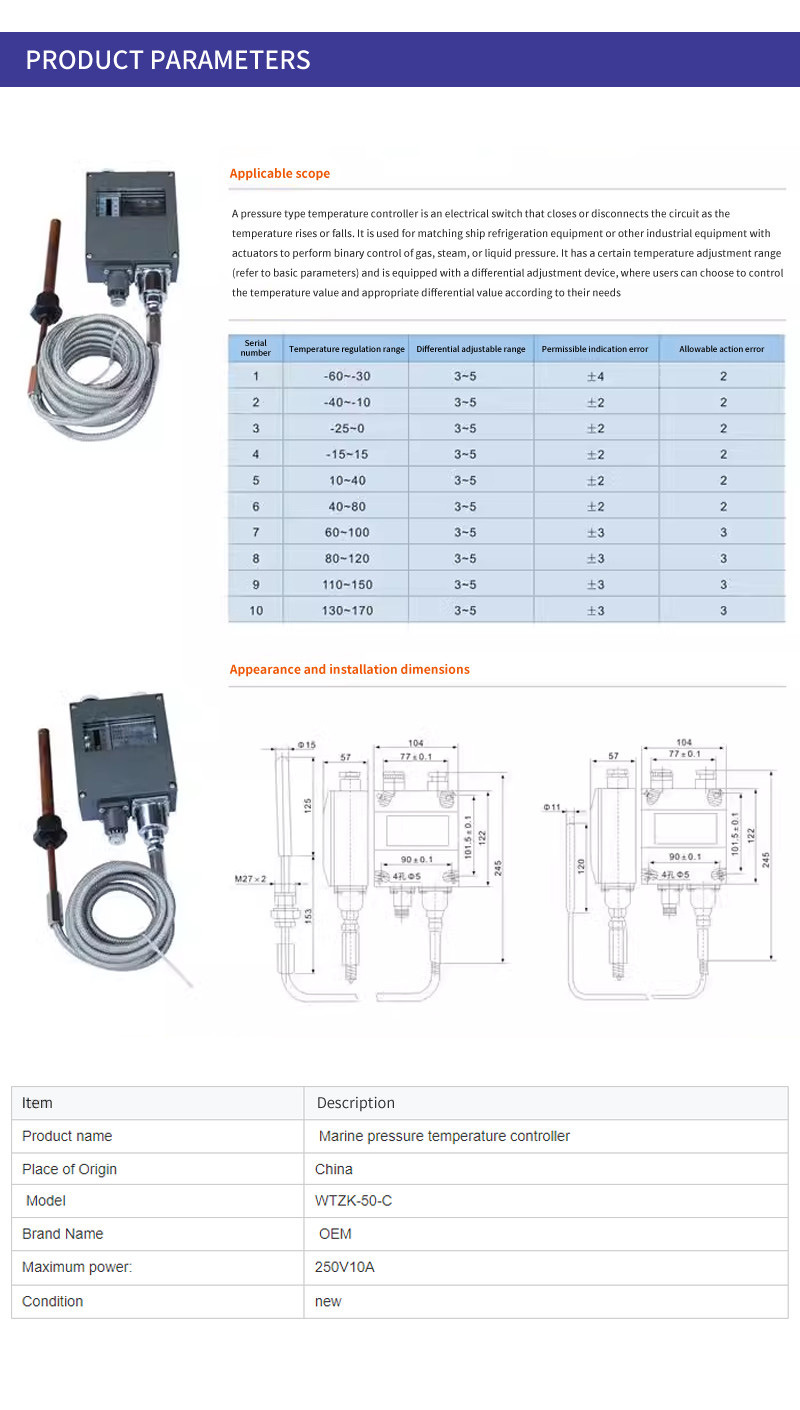

Product Parameters

Production description:
WTZK type temp. controller is an electrical switch that can make circuit close or open following change of controlled medium temp. It can be used to support performance structure in ship, freeze instrument or other industrial equipment by controlling temp. of gas, liquid or steam through two position type.

Main technical specification:
Temperature regulating range (ºC) -25~0, -15~+15, 10~40, 40~80, 60~100, 80~120, 110~150, 130~170
Switching error (ºC) 3~5
Accuracy (ºC) ±2
Repeatability error ≤2
Contact capacity AC380V 3A, DC220V 2.5A
Protection class IP44

Order note: Normally connection thread is M27*2, capillary length 5 meters.

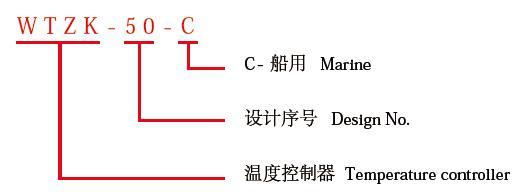

Model sign:
Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China

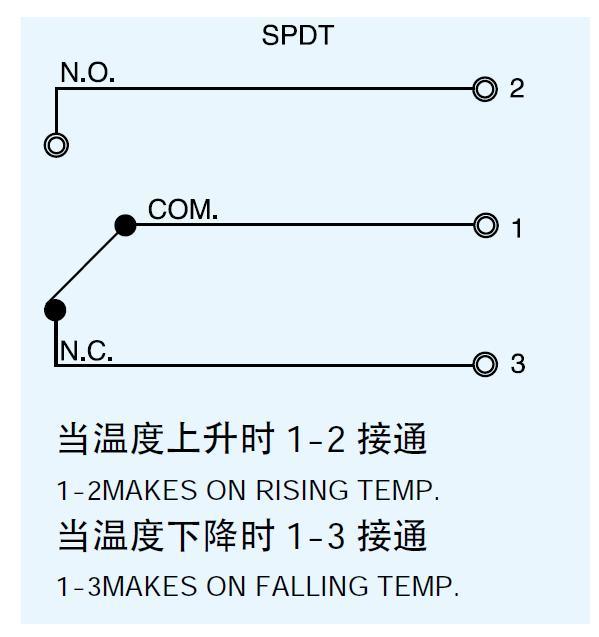

Contact form:
Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China

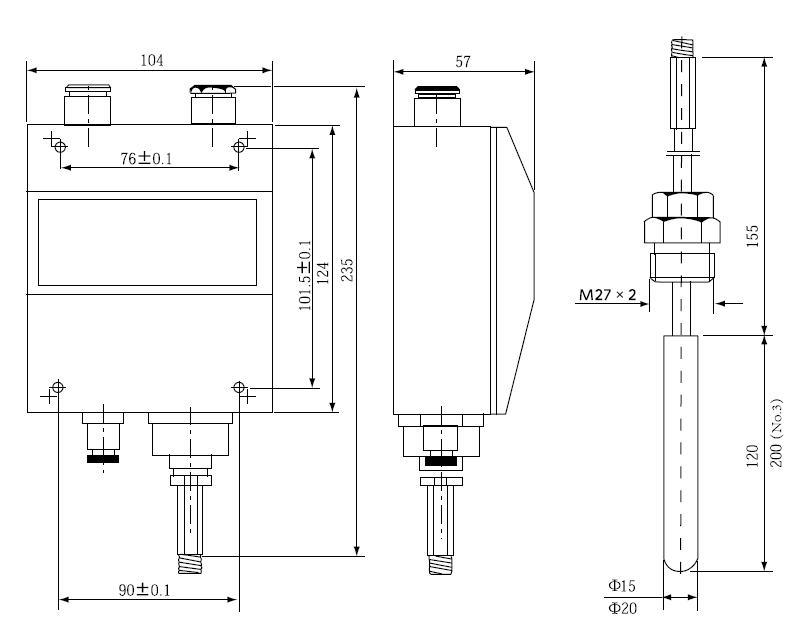

Sketch:
Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China

Wtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in ChinaWtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in ChinaWtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in ChinaWtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in ChinaWtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in ChinaWtzk-50-C Series Pressure Controller with Pressure Gauge for Temperature Made in China
