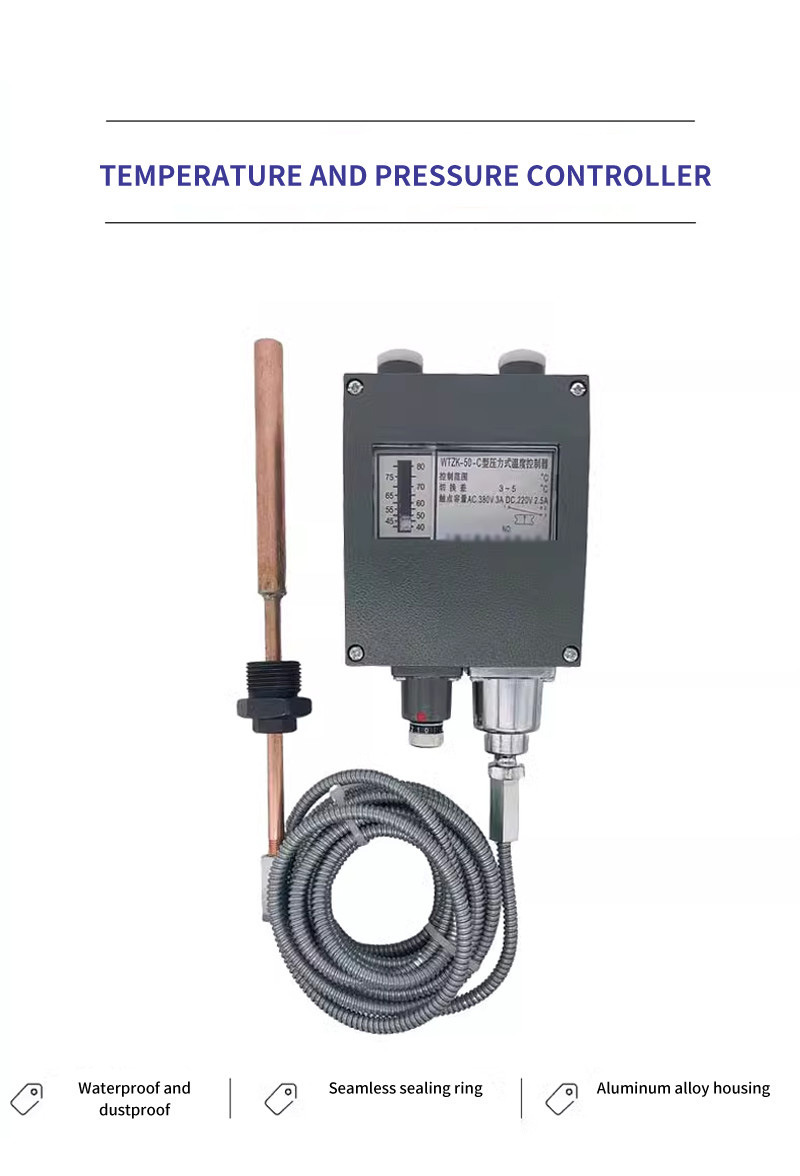

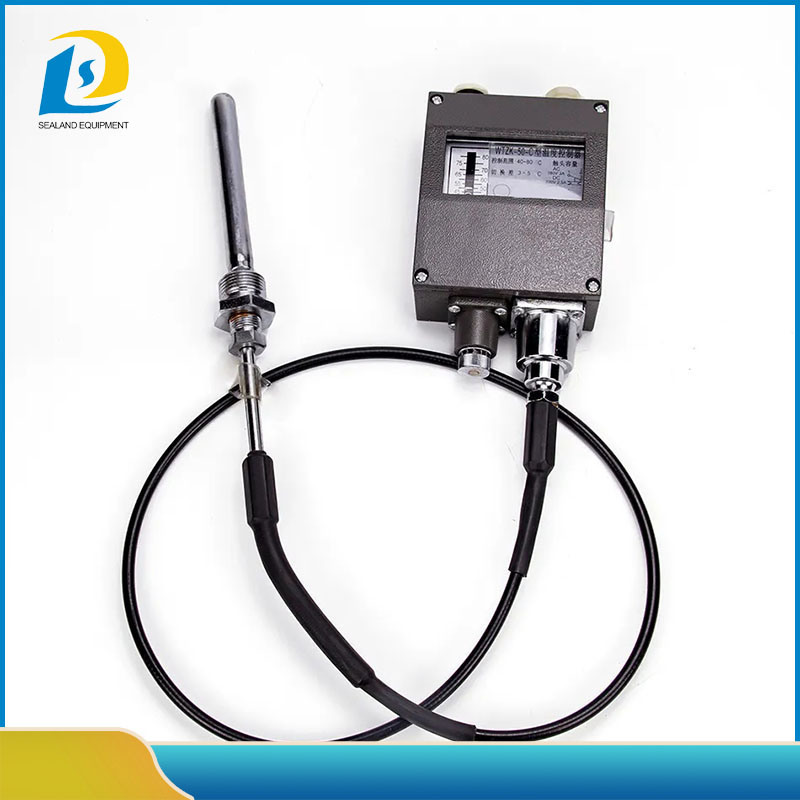

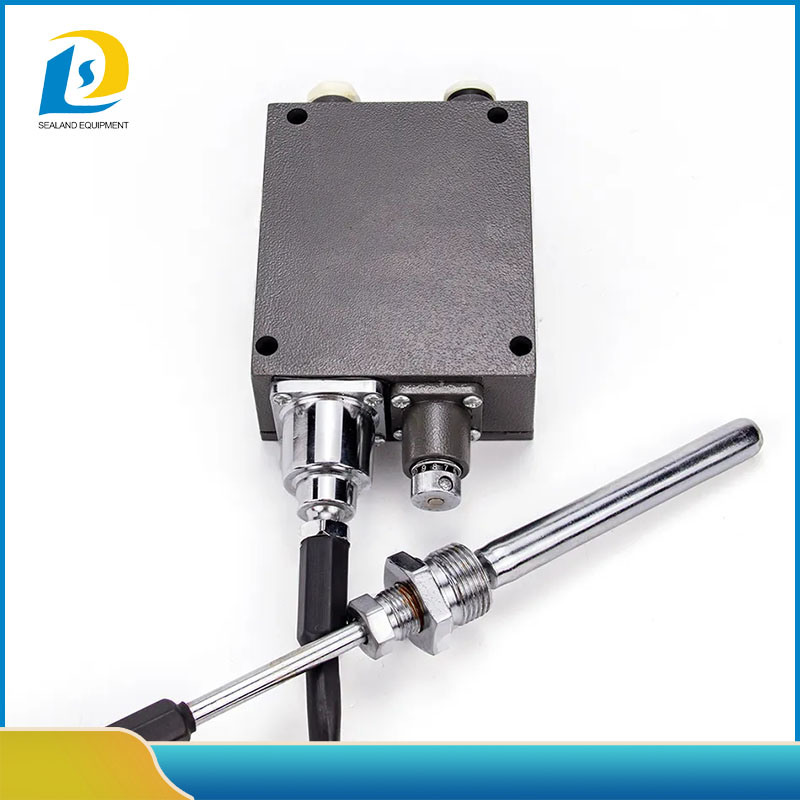

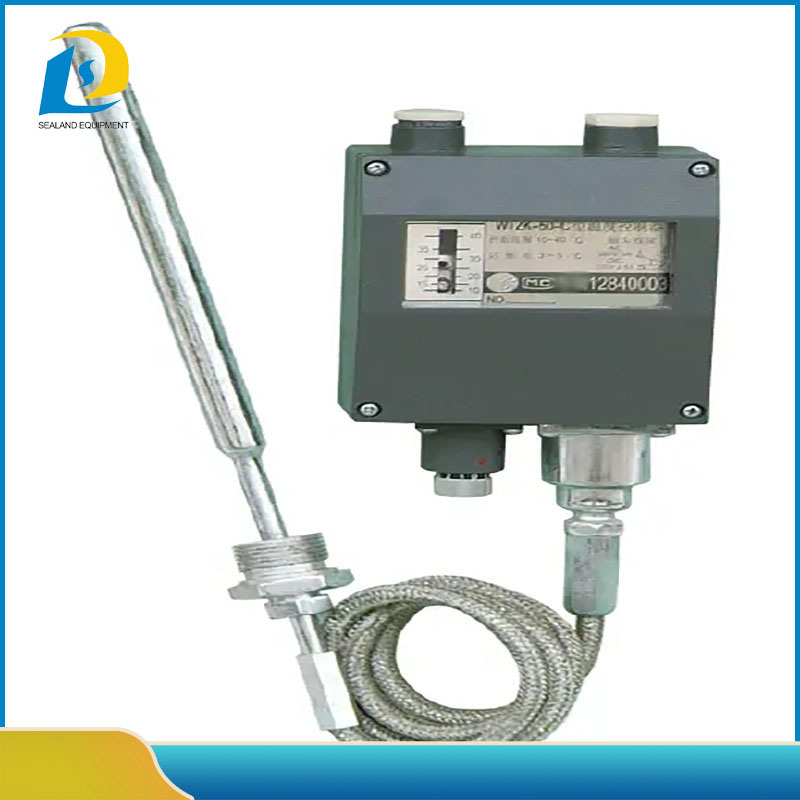

Wtzk-50-C Temperature Switch of Capillary 1.5 Meter

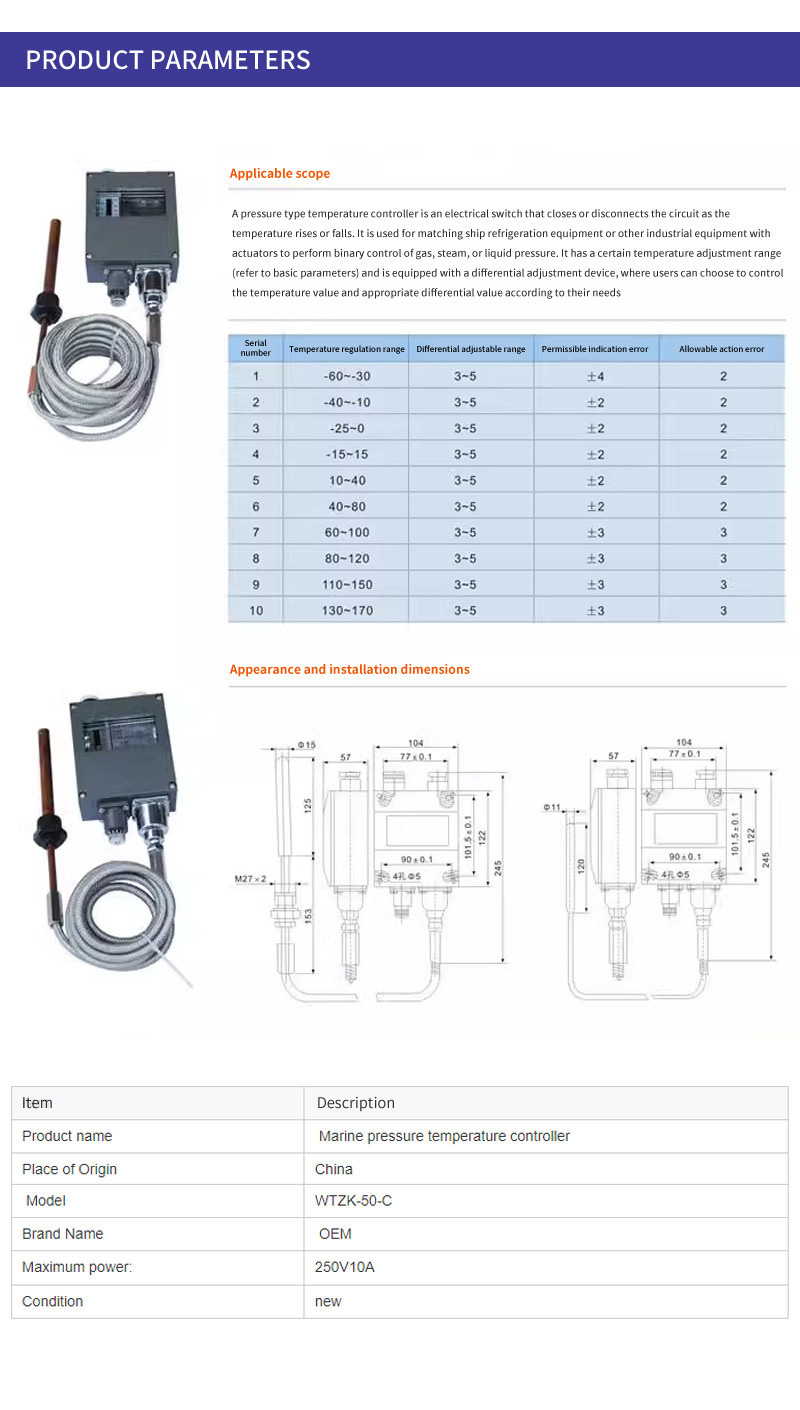

Product Parameters

Production description:
WTZK type temp. controller is an electrical switch that can make circuit close or open following change of controlled medium temp. It can be used to support performance structure in ship, freeze instrument or other industrial equipment by controlling temp. of gas, liquid or steam through two position type.

Main technical specification:
Temperature regulating range (ºC) -25~0, -15~+15, 10~40, 40~80, 60~100, 80~120, 110~150, 130~170
Switching error (ºC) 3~5
Accuracy (ºC) ±2
Repeatability error ≤2
Contact capacity AC380V 3A, DC220V 2.5A
Protection class IP44

Order note: Normally connection thread is M27*2, capillary length 5 meters.

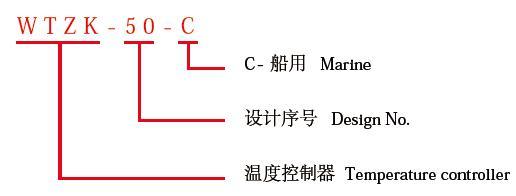

Model sign:
Wtzk-50-C Temperature Switch of Capillary 1.5 Meter

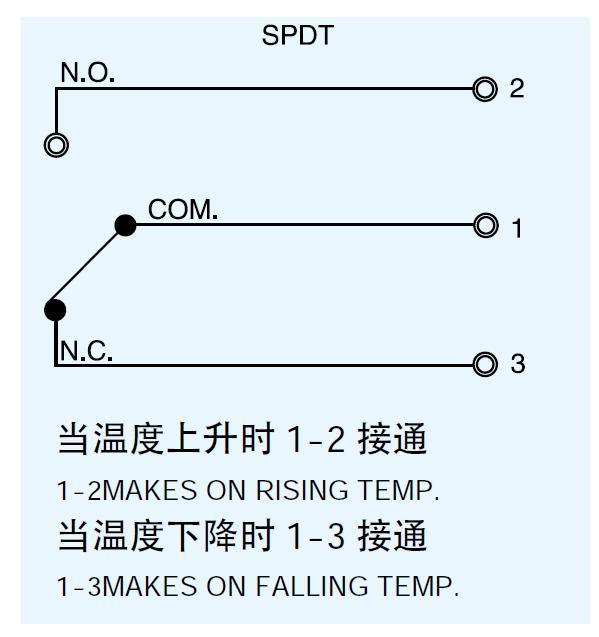

Contact form:
Wtzk-50-C Temperature Switch of Capillary 1.5 Meter

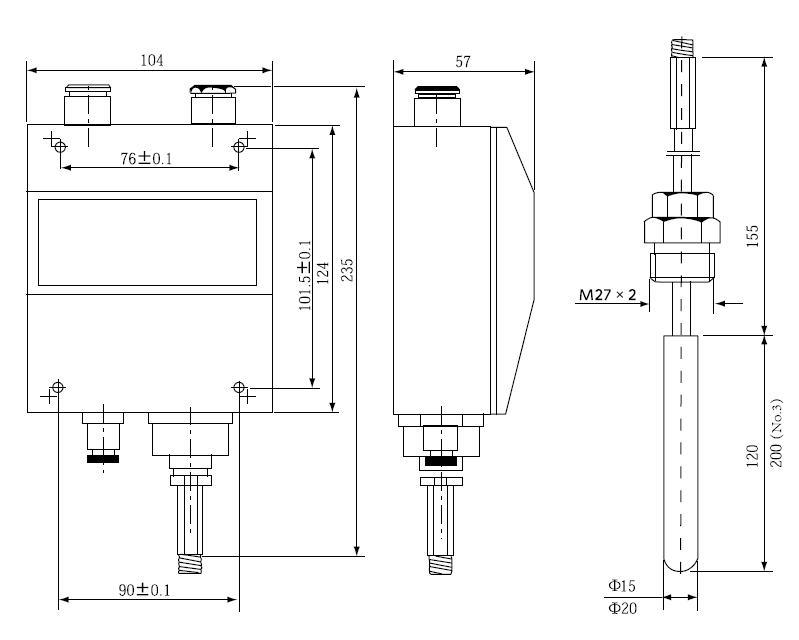

Sketch:
Wtzk-50-C Temperature Switch of Capillary 1.5 Meter

Wtzk-50-C Temperature Switch of Capillary 1.5 MeterWtzk-50-C Temperature Switch of Capillary 1.5 MeterWtzk-50-C Temperature Switch of Capillary 1.5 MeterWtzk-50-C Temperature Switch of Capillary 1.5 MeterWtzk-50-C Temperature Switch of Capillary 1.5 MeterWtzk-50-C Temperature Switch of Capillary 1.5 Meter
